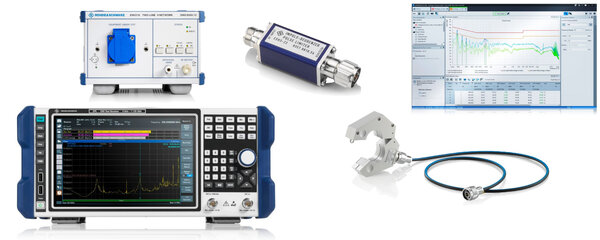

EMC/EMI Equipment

26 Items
EMC/EMI Equipment
EMI Software
ELEMI-E EMI Emissions Test Software for R&S Test Receivers and Spectrum Analyzer requires EMCPC (software license)
ELEMI-EP EMI Emissions Test Software for R&S Test Receivers and Spectrum Analyzer requires EMCPC (including dongle)
EMCPC ELEKTRA license dongle, includes smart card and smart card reader.
EMI Receiver and options
EPL1000 EMI Test receiver 5 kHz to 30 MHz compliant to CISPR 16-1-1
EPL1-B19 Replacement SSD including controller unit and instrument firmware.
EPL1-B91 Internal generator for EPL1000, 5 kHz to 30 MHz (hardware option, factory fitted only)
EPL1-K55E Realtime spectrogram with CISPR and MIL standard detectors and bandwidths for gapless EMI measurements
EPL1-K56 IF analysis RF spectrum display in parallel to the disturbance amplitude measurement (software license)
EPL1-K59 Click rate analyzer CISPR 14-1, up to 4 hours gapless measurement time (software license)
EPL1-Z1 Protective hard cover
EPL1-Z2 Transport bag for EPL1000 with transparent cover
EPL1-Z3 H-style shoulder harness for portable Operation with optional battery pack (requires EPL1-Z2)
EPL1-Z6 Rack mount kit for EPL1000
LISN Networks and accessories
ESH3-Z6 Single-line V-network, 5 µH/50 Ohm, frequency range 0.1 to 200 MHz, up to 100 A continuous current, incl. calibration certificate and report
ENV216 2-Line V-Network, 9kHz to 30MHz, 16A continuous current, for disturb. voltage measurements.
AMN6500 2-Line V-Network, 9kHz to 30MHz, 16A continuous current
EZ-21 Control cable, 3 m length; from EPL1000 and FPL1000 to LISN (accessory)
EZ-21 Control cable, 10 m length; from EPL1000 and FPL1000 to LISN (accessory)
EZ-27 Adapter for control cable EZ-21/EZ-13 for remote control of R&S V-networks(LISNs) by R&S EMI Test Receiver ESR(P)/ESL
Probes and other accessories
ESH2-Z3 Passive voltage probe, 9 kHz to 30 MHz, voltage division factor 30 dB, incl. calibration certificate and report
ESH3-Z2 Pulse limiter 0 - 30 MHz N-type connector incl. calibration certificate and report
EZ-17 RF current probe 20 Hz to 100 (245) MHz for emission measurements incl. calibration certificate and report
EZ-17 RF current probe 20 Hz to 100 (245) MHz for immunity measurements incl. calibration certificate and report
HZ-15 Probe set for E and H nearfield emissions 30 MHz to 3 GHz
HZ-16 Preamplifier 100 kHz to 3 GHz, 20 dB power supply 100 - 230 V for probe HZ-15
HZ-17 Probe set for H near-field emission measurements 30 MHz to 3 GHz
