Key Features and Specifications
- Testing from 5 kHz up to 7.125 GHz
- Precompliance and compliance testing
- Flexible option concept – buy what you need, upgrade at any time
- Fast time domain scan
- Battery operation for mains independent use
Addtional documents:
Perfect for quick and precise EMI measurements
For precompliance and compliance applications from 5 kHz up to 7.125 GHz

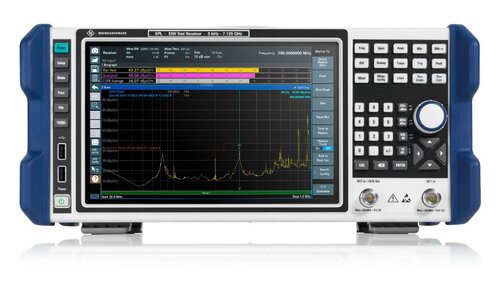

The R&S®EPL1000 is specially designed for conducted measurements up to 30 MHz. Even the base unit offers time domain scan and preselection with preamplifier and fully complies with CISPR 16-1-1. For flexible pricing, these features are optionally available for the R&S®EPL1001 and R&S®EPL1007 which measure up to 1 GHz/7.125 GHz. All models automatically perform EMI measurements over several individually defined frequency ranges. Results are easily saved and printed. The R&S®EPL also offers in-depth analysis functions including a real-time spectrogram and four-channel click rate analysis. Battery operation, 12 V to 24 V DC input, a carrying bag and other extras enable very flexible deployment of the R&S®EPL.
Perfect for quick and precise EMI measurements
For precompliance and compliance applications from 5 kHz up to 7.125 GHz
The R&S®EPL1000 is specially designed for conducted measurements up to 30 MHz. Even the base unit offers time domain scan and preselection with preamplifier and fully complies with CISPR 16-1-1. For flexible pricing, these features are optionally available for the R&S®EPL1001 and R&S®EPL1007 which measure up to 1 GHz/7.125 GHz. All models automatically perform EMI measurements over several individually defined frequency ranges. Results are easily saved and printed. The R&S®EPL also offers in-depth analysis functions including a real-time spectrogram and four-channel click rate analysis. Battery operation, 12 V to 24 V DC input, a carrying bag and other extras enable very flexible deployment of the R&S®EPL.
