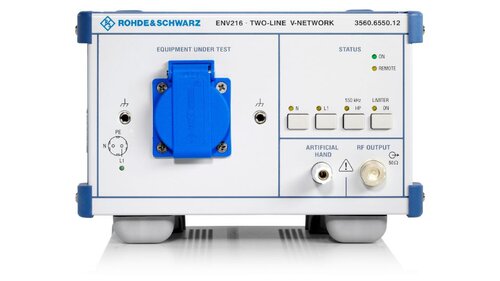

R&S ENV216 2-Line V-Network, 9kHz to 30MHz, 16A continuous current, for disturb. voltage measurements.
Key Features and Specifications
- Frequency range 9 kHz to 30 MHz
- Load capacity up to 16 A, constant current
- Afterimage impedance (50 μH + 5 Ω) || 50 Ω according to CISPR 16-1-2 Appendix 2: 2006
- V-network simulation according to CISPR, EN, VDE, ANSI, FCC part 15 and MIL-STD-461D, E and F
- Calibrated according to CISPR 16-1-2
- Ironless construction and hand replica
- Switchable 150 kHz high pass filter
- 10 dB attenuator installed
For disturbance voltage measurements on single-phase EUTs
The R&S®ENV216 two-line V-network meets CISPR 16-1-2 and EN 55016-1-2 requirements for V-networks with a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range from 9 kHz to 30 MHz as well as the ANSI C63.4 in the frequency range from 150 kHz to 30 MHz. A socket with protective earth contacts connects to the EUT. Various models with country-specific connector systems are available. The compact design and low weight make the R&S®ENV216 ideal for frequently varying applications, especially for on-site disturbance voltage measurements on single-phase EUT.
For disturbance voltage measurements on single-phase EUTs
The R&S®ENV216 two-line V-network meets CISPR 16-1-2 and EN 55016-1-2 requirements for V-networks with a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range from 9 kHz to 30 MHz as well as the ANSI C63.4 in the frequency range from 150 kHz to 30 MHz. A socket with protective earth contacts connects to the EUT. Various models with country-specific connector systems are available. The compact design and low weight make the R&S®ENV216 ideal for frequently varying applications, especially for on-site disturbance voltage measurements on single-phase EUT.
