Siglent SG-SAP5-KIT Accessory kit, for purchasing additional accessories when standard accessories are damaged.

Technical Data:

  • Bandwidth (probe only): >5 GHz
  • Bandwidth (with scope): >4 GHz?SDS6204A?
  • Differential Input Capacitance: 400 fF
  • Differential Input Resistance: 20 kΩ
  • Single-ended Input Resistance: 10 kΩ
  • Offset Range: ±12 V
  • Attenuation Ratio (DC): ÷10
  • Offset Accuracy: < 3%
  • DC Gain Accuracy: < 3%
  • Input Dynamic Range: ±2.5 V
  • Maximum Input Voltage (non-destructive): 20 V
  • Interface: SAPBus
  • Cable Length: 130 cm

Accessories:

Price

kr 1.963*
* excluding VAT free shipping (Denmark)

Product Number:

SG-SAP5-KIT

Manufacturer:

Siglent

Quantity:

Total
Unit price
Base Price
Availability:
Call or email for delivery time

Technical Data:

  • Bandwidth (probe only): >5 GHz
  • Bandwidth (with scope): >4 GHz?SDS6204A?
  • Differential Input Capacitance: 400 fF
  • Differential Input Resistance: 20 kΩ
  • Single-ended Input Resistance: 10 kΩ
  • Offset Range: ±12 V
  • Attenuation Ratio (DC): ÷10
  • Offset Accuracy: < 3%
  • DC Gain Accuracy: < 3%
  • Input Dynamic Range: ±2.5 V
  • Maximum Input Voltage (non-destructive): 20 V
  • Interface: SAPBus
  • Cable Length: 130 cm

Accessories:

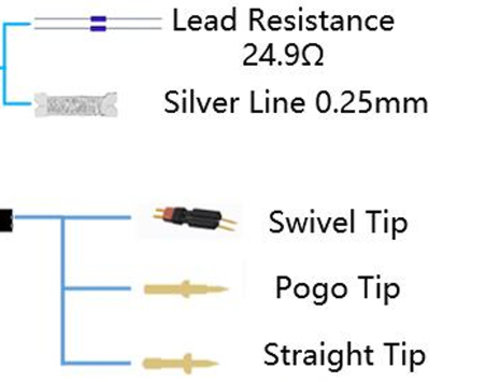

  • DBT-50 Adjustable Pin Head, SMP interface, connected to the probe amplifier
  • Siglent SMA-50 SMP interface, connected to the probe amplifier. The other end is SMA female
  • Siglent SAP5-KIT Accessory kit, for purchasing additional accessories when standard accessories are damaged.
