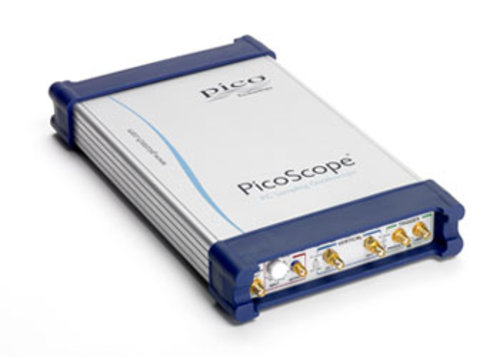

PicoScope 9321-20 kit, 2-channels, 20 GHz, Clock Recovery, Optical Input

additional images:

Sampling Oscilloscopes to 25 GHz with TDR/TDT and Optical models (Depending on model)

Key specifications

  • 20 GHz bandwidth
  • 2 channels
  • Optical input (9.5 GHz)
  • Clock recovery (11.3 Gb/s)
  • 15 TS/s (64 fs) sequential sampling
  • Up to 15 GHz prescaled, 2.5 GHz direct trigger and 11.3 Gb/s clock recovery
  • Industry-leading 16-bit 1 MS/s ADC and 60 dB dynamic range
  • Eye and mask testing to 16 Gb/s with up to 223–1 pattern lock
  • Intuitive, touch-compatible Windows user interface
  • Comprehensive built-in measurements, histogramming and editable data mask library

Remember: the price you pay for your PicoScope Sampling Oscilloscope is the price you pay for everything – PicoScope don’t charge you for software features or updates.

Price

kr 196.577*
* excluding VAT free shipping (Denmark)

Product Number:

PICO-PQ092

Manufacturer:

Picotech

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

Typical applications

  • Telecom and radar test, service and manufacturing
  • Optical fiber, transceiver and laser testing
  • RF, microwave and gigabit digital system measurements
  • Radar bands I, G, P, L, S, C, X, Ku
  • Precision timing and phase analysis
  • Digital system design and characterization
  • Eye diagram, mask and limits test to 10 Gb/s
  • Ethernet, HDMI 1, HDMI 2, PCI, SATA, USB 2.0, USB 3.0
  • TDR/TDT analysis of cables, connectors, backplanes, PCBs and networks
  • Optical fiber, transceiver and laser test
  • Semiconductor characterization
