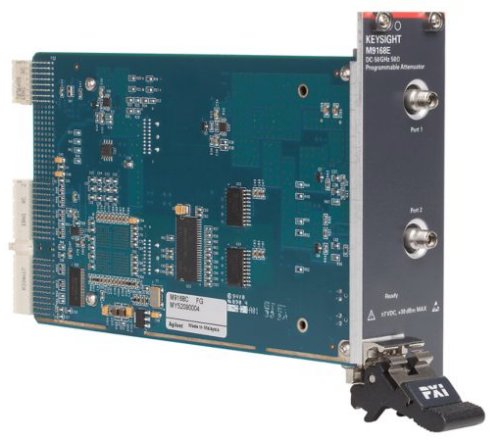

Keysight M9168E PXI-h Programmable Attenuator Module, DC-50.0 GHz
- Guaranteed 0.03 dB insertion loss repeatability through the operating life of up to 5 million cycles
- Broad attenuation range of 0 to 101 dB, with 1 dB step
- High attenuation accuracy and flatness of 0.97 at 50 GHz
The M9168E is a programmable step attenuator module based on PXI hybrid platform. The M9168E operates from DC to 50 GHz with a guaranteed 0.03 dB insertion loss repeatability for each section throughout the 5 million cycles operating life. Superior attenuation accuracy across a wide operating temperature range ensures precise measurements.
M9168E is a signal conditioning module that enhances the measurement accuracy and flexibility of PXI based RF and microwave test systems.
The M9168E is a programmable step attenuator module based on PXI hybrid platform. The M9168E operates from DC to 50 GHz with a guaranteed 0.03 dB insertion loss repeatability for each section throughout the 5 million cycles operating life. Superior attenuation accuracy across a wide operating temperature range ensures precise measurements.
M9168E is a signal conditioning module that enhances the measurement accuracy and flexibility of PXI based RF and microwave test systems.
