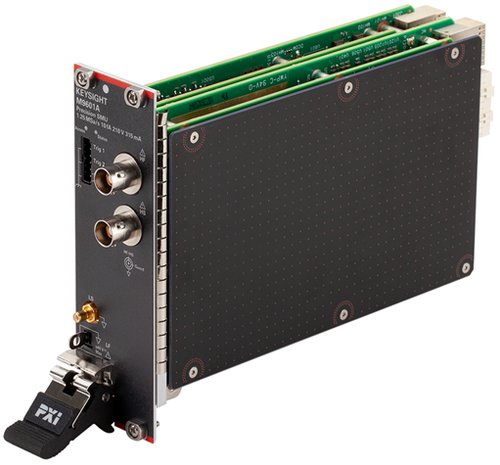

Keysight M9601A PXIe Precision Source/Measure Unit
Specifications
- Voltage: 210 V
- Current(DC/Pulse): 315 mA/ 315 mA
- Resolution 10 fA
- Quadrant Operation: Symmetry 4-quad
- Max Sampling Rate: 25 MSa/s
- Pulse Width: 20 μs
Description
The Keysight M9601A PXIe precision source/measure unit is a precision source/measure unit (SMU) with the capability to source and measure both voltage and current. It covers currents from 10 fA to 315 mA and voltages from 500 nV to 210 V. It can make precise measurements broadly from DC to pulsed down to 20 μs pulse width with the sampling rate up to 1.25 MSa/s. The M9601A is ideal for a wide variety of current versus voltage (IV) measurement tasks that require both high resolution and accuracy such as the characterization, parametric/reliability tests of semiconductors, active/passive components, and general electronic devices.
