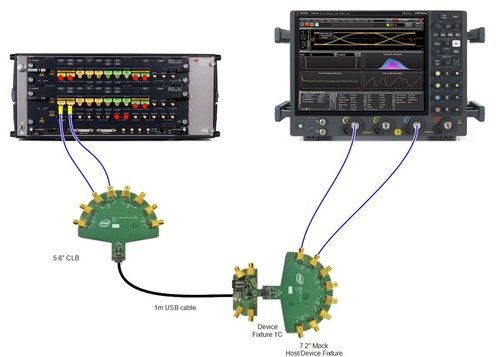

Keysight N5991U32A USB 3.2 Receiver Test

Key Features & Specifications

  • Guided setup with automated receiver stress signal calibration and compliance test procedures
  • One-button compliance capability to simplify test process
  • Expert mode for beyond-compliance testing and characterization
  • Concurrent jitter tolerance test at 5 Gbps and 10 Gbps in dual lane mode (x2)
  • Component and embedded retimer test procedures
  • USB Type-C® interface control with N7018A Type-C Test Controller
  • HTML and/or Microsoft Excel reports for easy post-processing
  • N5991U32E Debug Tools Link Training Suite available to debug DUTs easily and create custom link training sequences

Product Number:

N5991U32A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The Keysight N5991U32A Receiver Compliance Test Software maximizes the throughput of your test instruments, helping you test, debug and characterize your USB 3.2 designs easily with an intuitive user interface. The software automates the complex stress signal calibration and receiver test procedures, replacing the human factor with consistency and repeatability. During the process, the software generates test reports that can be exported in HTML or Microsoft™ Excel format for further data analysis. The USB-IF SIGTEST waveform processing tool, needed for the stress signal calibration, is fully integrated and its execution has been optimized to complete the calibration process quickly and accurately.

Complete your USB 3.2 test station with the Keysight N5991U32E Debug Tools Link Training Suite, a software tool designed to ease debugging the USB 3.2 Link Training Status and State Machine (LTSSM). This tool allows you to fine-adjust the link training sequence to meet the needs of your product and generates a script that you can export and use directly in the Receiver Compliance Test Software.

Keysight partner BitifEye Digital Test Solutions, market leader for high-speed digital test automation, provides integrated solutions that complement the Keysight instrument portfolio. To learn more about BitifEye and their wide range of software and hardware products and services, visit www.bitifeye.com.
