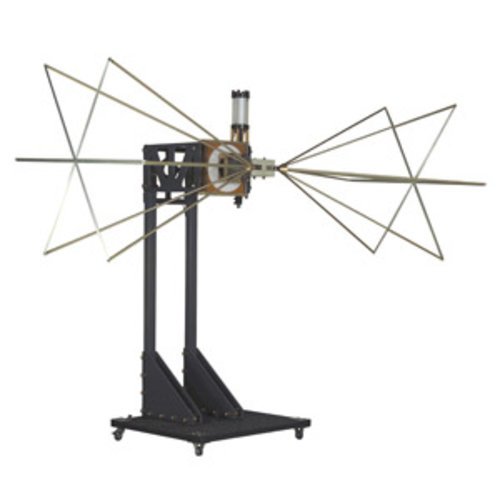

ETS-3159 Biconical Antenna (30 - 100 MHz)
- 30 MHz to 100 MHz frequency range
- Tilt-angle and polarization are easily adjustable
- 2 Biconical elements
- High power balun handles up to 15 kW RF input power
- Mounted on wheeled base for easy mobility
- Wide beamwidth illuminates a large uniform area
Electrical Specifications
- Frequency Minimum 30 MHz
- Frequency Maximum 100 MHz
- 30 MHz - 1000 MHz 30 MHz
- Connectors 7/8 EIA Flange
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 15 kW
- Pattern Type omnidirectional
- Polarization linear
- VSWR 2:1
Physical Specifications
- Custom Pedestal Dimension Height (High range) 2 m
- Custom Pedestal Dimension Height (Low range) 1.6 m
- Custom Pedestal Dimension Length 120 cm
- Custom Pedestal Dimension Width 120 cm
- Diameter 104 cm
- Length 300 cm
Stock
Call or email for delivery time
The 3159 Biconical Antenna exhibits a wide beamwidth and is specially designed to handle up to 10 kW input power for generating high electric field strength over a large uniform area.An optional wheeled pedestal is available which permits horizontal and vertical antenna polarization, height, and tilt angle adjustments. A pneumatic cylinder is used to change polarization, and can be remotely controlled using an optional Model 2090 Controller. The Model 2090 is IEEE-488 compatible, and uses fiber optic I/O for communication with the pedestal.Unlike a top-hat capacitively-loaded log periodic dipole antenna normally used in this frequency range, the phase center/ source distance is the same for low and high frequencies. This ensures high field strength at frequencies as low as 30 MHz. The design of the Model 3159 Biconical Antenna takes advantage of the wide beamwidth feature of a biconical antenna, and its optimized design provides low VSWR and high radiation efficiency.
