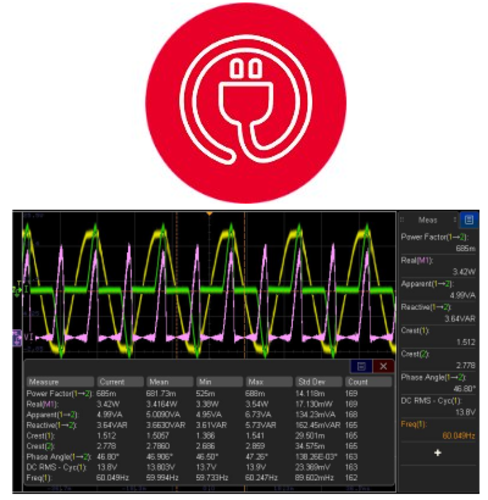

Keysight D3000PWRB Power Supply Test Software for 3000 X-Series

Key Features & Specifications

  • Power quality: Real power, apparent power, reactive power, power factor, crest factor (V & I), phase angle
  • Current harmonics (based on IEC 61000-3-2 up to the 40th harmonic)
  • Inrush current

Switching Measurements

  • Rds-on & Vce-sat (3000T X-Series only)
  • Switching loss (power & energy)
  • Slew rate (dv/dt & di/dt)
  • Modulation (duty cycle, pulse-width, period, frequency, etc., versus time plot)

Output Measurements

  • Output ripple
  • Turn-on/turn-off time
  • Transient response time
  • Efficiency

Frequency Response Measurements

  • Power supply rejection ratio (PSRR) – Bode (3000T X-Series only)
  • Control loop response – Bode (3000T X-Series only)
Price

kr 12.161*
* excluding VAT free shipping (Denmark)

Product Number:

D3000PWRB

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

Description

The power software package for Keysight’s InfiniiVision 3000A X- and 3000T X-Series oscilloscopes enables a broad range of automated power supply characterization measurements including critical frequency response measurements (3000T X-Series only) such as power supply rejection ratio (PSRR) and control loop response. This package also enables hardware-based pass/fail mask testing and USB PD triggering and decode (3000T X-Series only).
