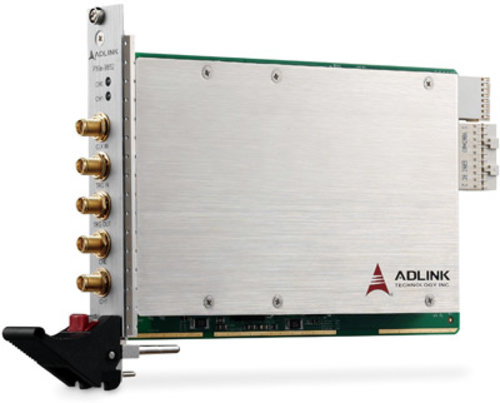

ADLINK-PXIe-9852 2-CH, 14-bit, 200MS-s High Speed PXI Express Digitizer

2-CH 14-Bit 200 MS/s High-Speed PXI Express Digitizer

Features

  • PXI Express specification Rev. 1.0 compliant
  • 2 simultaneously analog inputs, up to 200 MS/s sampling rate, and High resolution 14-bit ADC
  • Up to 90 MHz bandwidth for analog input
  • 1 GB onboard storage memory
  • Programmable input voltage range of ±0.2 V, ±2 V, or ±10 V
  • One external digital trigger input and one external trigger output
  • Full auto-calibration
  • Support signal averaging feature
Price

kr 42.691*
* excluding VAT free shipping (Denmark)

Product Number:

ADLINK-PXIe-9852

Manufacturer:

ADLINK

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The ADLINK PXIe-9852 is a 2-CH 14-bit 200 MS/s digitizer for high frequency and wide dynamic range signals with an input frequency up to 90 MHz. The 90 MHz bandwidth analog input with 50Ω impedance is designed to receive ±0.2 V, ±2 V, or ±10 V high speed signals. With a PCI Express bus interface and ample onboard acquisition memory up to 1 GB, the PXIe-9852 easily manages simultaneous 2-CH data streaming. With high speed and high linearity 14-bit A/D converters and high stable onboard reference, the PXIe-9852 provides both high accuracy and high dynamic performance, making it ideal for applications requiring high-speed data acquisition, such as optical fiber and LIDAR testing, and video signal analysis.

Description
Additional Informations
Reviews
Query on the Item?
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item?

The ADLINK PXIe-9852 is a 2-CH 14-bit 200 MS/s digitizer for high frequency and wide dynamic range signals with an input frequency up to 90 MHz. The 90 MHz bandwidth analog input with 50Ω impedance is designed to receive ±0.2 V, ±2 V, or ±10 V high speed signals. With a PCI Express bus interface and ample onboard acquisition memory up to 1 GB, the PXIe-9852 easily manages simultaneous 2-CH data streaming. With high speed and high linearity 14-bit A/D converters and high stable onboard reference, the PXIe-9852 provides both high accuracy and high dynamic performance, making it ideal for applications requiring high-speed data acquisition, such as optical fiber and LIDAR testing, and video signal analysis.
