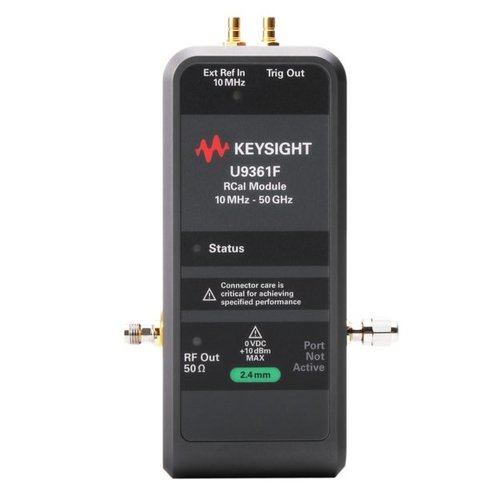

Keysight U9361F RCal Receiver Calibrator, 10 MHz-50 GHz, 2.4 mm Connector
Key Features and Functions
Rcal improves Signal Analyzer test accuracy by a factor of 10
Even short cables can cause losses at millimeter-wave frequencies. Using the U9361 RCal, you can now move the reference plane in the measurement system to the output of your device under test. Two modes allow the device to operate as an absolute power reference or as a comb generator for complex calibration.
- Improve your test Rx system accuracy by an order of magnitude
- Seamlessly move reference plane to the output of the DUT with easy-to-use, simple command structure and automation
- Frequency range of 10 MHz - 110 GHz
- Compact, palm-size, USB-powered and controlled
- Ultra-stable and repeatable, with precision factory cal data inside
- Both magnitude and phase corrections with tunable, BPSK comb modulation
- US Patent for BPSK modulation calibrator
Documents and Software Solutions:
ACCURACY
The Keysight U9361 RCal receiver calibrator allows you to correct linear errors in your signal analyzer measurement setup. Transfer absolute power accuracy (dBm) to your signal analyzer while generating flatness corrections in both magnitudes and phase up to 5 GHz IF bandwidths.
EFFICIENCY
The palm-sized, USB-powered, and USB-controlled RCal gives you an ultra-stable reference and repeatable results. Seamlessly transfer precision factory calibration data to your Keysight X-Series signal analyzer over a USB connection. Drastically reduce the effort and complexity required to improve measurement accuracy for the test receiver system.
VALUE
The U9361 RCal enables you to correct absolute power accuracy, magnitude flatness, and phase flatness with a single device. One RCal receiver calibrator eliminates the need for multiple pieces of test equipment to calibrate your signal analyzer.
