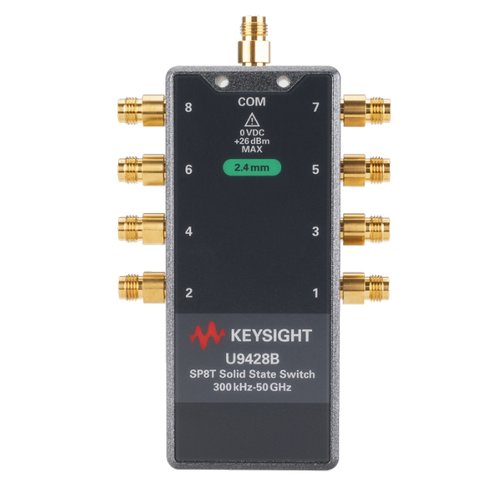

Keysight U9428B FET Solid State Switch, 300 kHz to 50 GHz, SP8T

Key Features and Functions:

  • Broad operating frequency range from 300 kHz to 50 GHz.
  • Minimizes crosstalk with exceptionally high isolation across a broad frequency.
  • Prevent damage to sensitive components with low video leakage.
  • Maintain fast throughput switch switching speed in microseconds.
  • USB connection that comes with multiport configuration connectivity port for PXIe and USB VNA or solder connector options provide switches configuration flexibility.

Documents:

Product Number:

U9428B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Switch signals without physically changing the connections so you can perform multiple tests with the same setup.

The U942xA/B/C FET solid state switches offer superior performance in terms of isolation and video leakage across a broad operating frequency range of up to 26.5/50/54 GHz. These SPDT/SP4T/SP8T switches are used to increase system flexibility and simplicity and are easily controlled with USB connection; that comes with the flexibility of multiport configuration connectivity port PXIe and USB VNA or through a soldering connector option. These switches offer unmatched isolation performance between ports, as high as 100 dB at 9 GHz or 70 dB up to 54 GHz (SPDT). In addition, the U942xA/B/C provide low video leakage less than 270 mVpp for SPDT which ensures safe testing of sensitive components. High video leakage can degrade measurement accuracy and possibly damage sensitive components or equipment. Low video leakage makes these switches particularly suited for measuring sensitive devices and components such as mixers and amplifiers.
