Key Features and Functions
- 5-inch true color TFT-LCD display with a resolution of 800 * 480, paired with a touchable screen and a brand-new UI
- Real 6½ digit (2,200,000 count) readings resolution
- Up to 50k rdgs/s of measurement speed, support a maximum sampling interval of 100 PLC and a minimum sampling interval of 0.001 PLC
- 512 MB RAM, capable of saving up to 2M readings for caching, support timestamp
- 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
- 4 trigger modes: auto trigger, single trigger, external trigger and level trigger
- 4 display modes: numerical, bar meter, trend chart and histogram
- DC measurements support autozero functions
- True-RMS AC Voltage and AC Current measurement
- Support automatic switching between 10 A high current and 3 A low current measurement modes, and can be tested up to 30 A when paired with an external shunt
- Support RTD, thermocouple and user-defined sensor
- Support dual display and probe hold functions
- Support standard SCPI remote control commands
- Equipped with EasyDMM-X host computer control and sampling software
- Built-in help system for easy information retrieval
Interfaces and protocols:
- USB Device (optional USB-GPIB adapter), USB Host, LAN
- Other interface: VMC output, Trigger input Remote access support for VNC, web servers
- Built-in help system for easy information retrieval
Documents and Software Solutions:
Product Overview

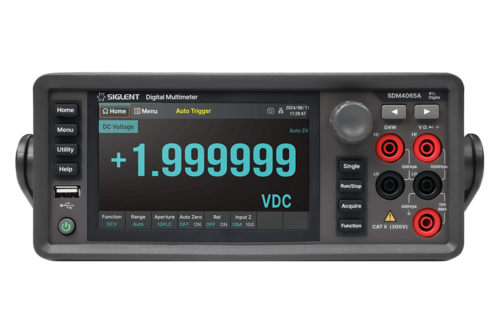

SIGLENT SDM4065A and SDM4065A-SC Digital Multimeters are a 6 ½ digit DMM (2,200,000 counts) incorporating a dual–display. The SDM4065A series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM4065A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM4065A-SC products only. It cannot be added to SDM4065A instruments at a later time.
Product Overview
SIGLENT SDM4065A and SDM4065A-SC Digital Multimeters are a 6 ½ digit DMM (2,200,000 counts) incorporating a dual–display. The SDM4065A series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM4065A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM4065A-SC products only. It cannot be added to SDM4065A instruments at a later time.
