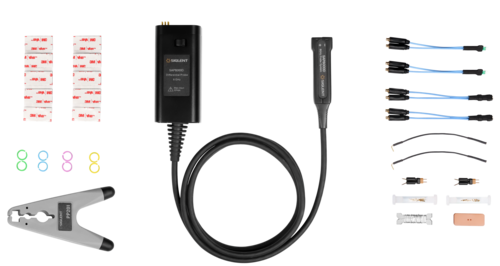

Siglent SAP8000D Differential Active Probe, DC-8 GHz, 300 fF, Range +/-2.5 V, Offset +/-12 V, SAPBus Interface
Technical Data:
- Probe Bandwidth: DC to 8 GHz
- Single-ended input resistance: 10 kΩ
- Differential input resistance: 20 kΩ
- Probe gain: ÷ 10
- Differential input capacitance: 300 fF
- ± 2.5 V input dynamic range
- ± 12 V offset voltage setting range
- SAPBus interface
Standard Accessories:
- Solder-in Differential Head DSI-01
- Solder-in Single-ended Head SSI-01
- Socketed Differential Head DRP-01
- Socketed Single-ended Head SRP-01
- thickness gauge
- 10cm Ground Wire
- Straight Pin
- Pogo Pin
- Swivel Pin
- Silver Wire
Probe features
SAP8000D is a high-bandwidth differential active probe known for its features such as high bandwidth, low noise, making it suitable for measuring high-speed signals. Its low input capacitance characteristics ensure minimal load introduced to the measurement system.
The SAP8000D active probe utilizes the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS7000A series oscilloscopes.
The SAP series active probes do not require external power sources as the oscilloscope provides power and communication interface to the active probe through the SAPBus interface. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope's interface.
