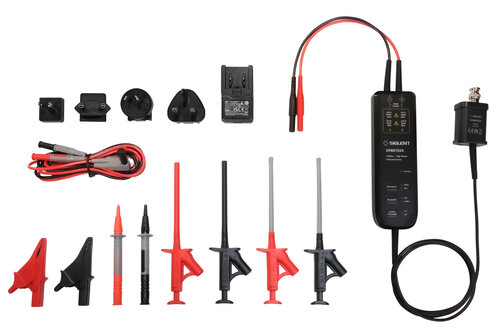

Siglent DPB6150A High voltage differential probe. 100 MHz, Max. differential voltage ±1500 V. BNC interface
Specifications:
- Bandwidth 100 MHz
- Rise time ≤3.5 ns
- DC accuracy ±2%
- Attenuation rate 50X/500X
- Differential test voltage (Max.)
- 50X ±150 V
- 500X ±1500 V
- Input voltage to earth:
- (Max.) 1000 V CAT II, 600 V CAT III
- CMRR
- DC: 80 dB
- 100 kHz: 60 dB
- 1 MHz: 40 dB
The DPB6150 and SDP6150 series high-voltage differential probes can measure up to 1500 Vpk voltage and have a maximum bandwidth of 400 MHz. It provides two ranges for selection have sound and light alarm function.
DPB6150 series output cable is connected to a power supply module and BNC interface, which provide power to the probe and can be adapted to various types of oscilloscopes. SDP6150 series is equipped with SAPBUS output interface, which can be used in conjunction with SIGLENT oscilloscopes.
With SAPBUS interface the oscilloscopes automatically recognizes and configures the probe range and other functions. DPB6150 and SDP6150 series probes have high CMRR, with high input impedance and low capacitance, which can accurately and quickly measure differential voltage signals.
The DPB6150 and SDP6150 series high-voltage differential probes can measure up to 1500 Vpk voltage and have a maximum bandwidth of 400 MHz. It provides two ranges for selection have sound and light alarm function.
DPB6150 series output cable is connected to a power supply module and BNC interface, which provide power to the probe and can be adapted to various types of oscilloscopes. SDP6150 series is equipped with SAPBUS output interface, which can be used in conjunction with SIGLENT oscilloscopes.
With SAPBUS interface the oscilloscopes automatically recognizes and configures the probe range and other functions. DPB6150 and SDP6150 series probes have high CMRR, with high input impedance and low capacitance, which can accurately and quickly measure differential voltage signals.
