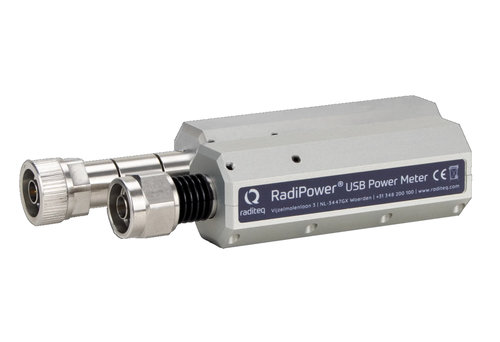

Raditeq RPR2018C RadiPower 18 GHz CW Power Meter

RadiPower® Power Meter | 80 MHz – 18 GHz

An accurate and fast power meter is indispensable to perform reliable EMC measurements. The RadiPower® offers a range of RF power meters for CW or Burst/Pulse power measurements during EMC tests. The RadiPower® offers an affordable, accurate and extremely fast CW power meter. It provides measurements within 0.25 dB over a frequency range from 80 MHz up to 18 GHz, which enables effective measurements in accordance with the latest international EMC standards.

Specifications:

• Detector type: Log envelop detector
• Measuring function: CW power
• Measurement speed: 20 kSps, 100 kSps, 1 MSps
• Resolution : 0,01 dB
• Frequency range: 80 MHz up to 18 GHz

Standard delivered including:

• RPR2018C – RF CW Power Meter
• USB cable
• Protective case
