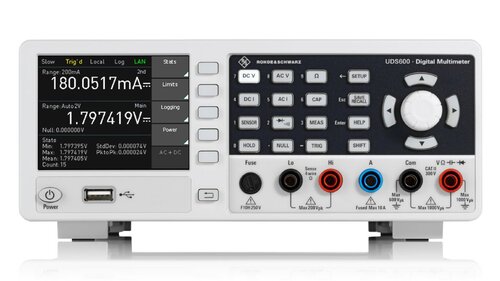

R&S UDS600 Digital multimeter, 6 1/2 digit, simultaneous display of 3 meas, up to 200 meas/s, logging, USB/LAN interface
Key Features and Specifications
- Digit resolution: up to 6½ digits
- Basic DC accuracy: 0.0075 %
- Measurement range: DC to 100 kHz
- Up to 200 readings/s
- Measurement functions: basic, mathematical
- Resolution: 100 nV, 10 nA, 0.1 mΩ, 0.1 pF, 1 Hz, 0.1 °C
- Simultaneous display of three measurements, e.g. DC, AC and statistics
- Up to 12 measurement functions: DCV, DCI, true RMS, ACV and ACI, frequency, two-wire and four-wire resistance, capacitance, continuity test, diode test, temperature, power
- Versatile mathematic functions: limit testing, min./max., average, offset, DC power, dB, dBm
- Brilliant QVGA color display for excellent readability
- Limit testing directly on the display for easy minimum/maximum analysis
- Long-term data logging in CSV format via USB flash drive
- USB port (virtual COM port, USBTMC)
- Ethernet interface (LAN) with integrated web server
- Remote control via SCPI based commands
- Driver packages for LabVIEW, LabWindows/CVI, IVI.net
- R&S®UDSx-G models: also IEEE-488 (GPIB) interface
- Code compatible with R&S®HMC8012
The R&S®UDS family of compact digital multimeters is engineered for both general-purpose and production line environments. Renowned for their versatility and precision, the multimeters can simultaneously display three measurement functions, streamlining test workflows. Beyond the standard 12 measurement functions, the multimeters offer built-in statistical and mathematical functions and an intuitive user interface for smooth and efficient testing.
Accuracy, speed and usability are vital to digital multimeters. The instruments are indispensable in circuit troubleshooting, component testing and system validation. The R&S®UDS family of digital multimeters are a power ful solution and include 5½ and 6½ digit multimeters, tai lored for both laboratory and production testing. The large screen can display three values at the same time and be easily viewed from a distance
The R&S®UDS family of compact digital multimeters is engineered for both general-purpose and production line environments. Renowned for their versatility and precision, the multimeters can simultaneously display three measurement functions, streamlining test workflows. Beyond the standard 12 measurement functions, the multimeters offer built-in statistical and mathematical functions and an intuitive user interface for smooth and efficient testing.
Accuracy, speed and usability are vital to digital multimeters. The instruments are indispensable in circuit troubleshooting, component testing and system validation. The R&S®UDS family of digital multimeters are a power ful solution and include 5½ and 6½ digit multimeters, tai lored for both laboratory and production testing. The large screen can display three values at the same time and be easily viewed from a distance
