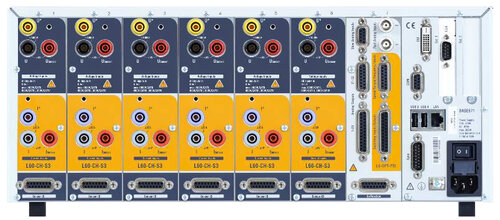

R&S L60-CH-B3 B-Channel: Universal measurements up to 500 kHz
L60-CH-B3 - channel for universal measurement applications, supported DualPath functionality
- Bandwidth from DC-500 kHz
- Best Power accuracy 0.05 % + 0.02 %
- Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measurement range:
- Voltage direct: Utrms = 300 mV to 1000 V/ Udc = 300 mV to 1000 V in 10 measurement ranges, upk = 3200 V
- Current direct: Itrms = 500 µ?...32 A in 10 measurement ranges, Ipk = 120 A
- Current sensor input: Utrms = 3 mV to 4 V / Udc = 3 mV to 10 V in 8 Measurement ranges upk = 12.5 V
Versatile high-precision power analyzer
The ZES ZIMMER LMG600 precision power analyzer series provides high-accuracy power measurements in demanding test applications. DualPath architecture enables simultaneous wideband and narrowband analysis up to 10 MHz. The analyzer precisely measures very low power, complex multi-phase and high-power systems with configurable power channels and external sensors.
A 10.1' touchscreen with intuitive user interface, built-in data logging and customizable menus simplifies operation and reduces setup times. Whether in R&D, validation or certification, the analyzer delivers consistent, traceable results for accurate power analysis.
