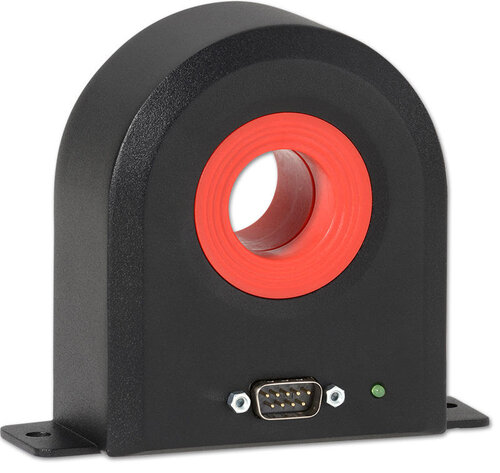

R&S PCT1200 Precision Current Transducer 1200 Arms
Precision Current Transducer PCT Series
A closed-loop, flux-gate technology based current transducer for non-intrusive, isolated DC and AC current measurements, developed to offer extreme linearity and support the full industrial temperature range. The sensor features an aluminium body for effective EMI shielding. PCT sensors connect directly to LMG power analyzers via Plug n Measure, enabling automatic transfer of all key parameters such as precise scaling factor, delay compensation variable, last calibration date, and sensor type. The sensors are also actively powered by the LMG power analyzer or by an external sensor supply unit.
Key Specifications
| Precision current transducer with built-in electronics | |
| Max. Accuracy | 0.01% |
| Temperature range | -40°C to +85°C -40°C to +45°C (PCT2000) |
| Power supply | Internally from LMG95 / LMG500 / LMG600 series Externally from PCTSIU4 for LMG450 (PCT200/600) Solely externally from PCTSIU4 for LMG95 / LMG450 / LMG500 Internally from LMG600 series (number of supplied heads limited see sensor datasheets) (PCT1200 / PCT2000) |
Versions
| Model | Description |
|---|---|
| PCT200 | Precision current transducer, max 200 Arms (300 A peak), Ratio 500:1, Range DC 1 MHz |
| PCT600 | Precision current transducer, max 600 Arms (900 A peak), Ratio 1500:1, Range DC 500 kHz |
| PCT1200 | Precision current transducer, max 1200 Arms (1800 A peak), Ratio 1500:1, Range DC 400 kHz |
| PCT2000 | Precision current transducer, max 2000 Arms (3000 A peak), Ratio 1500:1, Range DC 300 kHz |
Optional Accessories
| Accessory | Description |
|---|---|
| L60-X-ADSE | Adaptor for LMG600 series to connect sensors and current clamps |
| PCTSIU4 | Four-channel sensor supply unit |
| PCTSIU4-1U | Four-channel sensor supply unit, 19 rack-mount, 1U height |
| L50-Z14 | Adapter for LMG500 to connect sensors and clamps (HD15-plug) |
| PCTx-K-L45 | Connecting cable for PCT200/600 to LMG450 and PCTSIU4 |
| PCTx-K-L50 | Connecting cable for PCT200/600 to LMG500, powered by LMG500 |
| PCTx-K-L6 | Connecting cable for PCT200/600/1200/2000 to LMG600 series, powered by LMG600 (limited number of heads, see sensor datasheets) |
