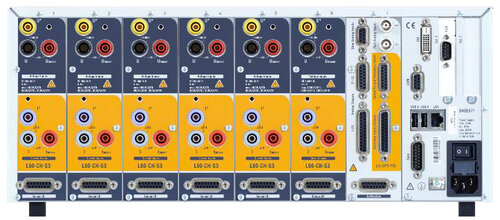

R&S L60-CH-A2 A-Channel: High-precision wideband measurements up to 10 MHz
L60-CH-A2.1 - channel for high-precision wideband measurement Supported DualPath functionality
- DC-10 MHz bandwidth
- Best Power accuracy: 0.015% + 0.01 %
- Measurement channel resolution 18 bit.
- Max. 1000V/CAT II, 600V/CAT III, 300V/CAT IV
Measurement range:
- Voltage direct: 300 mV - 1000 V rms in 10 measurement ranges, 3200 upk
- Voltage sensor input: 3 mV -4 Vtrms in 8 measurement ranges, 12.5 upk
- Current direct: 500 µA - 32 Atrms in 10 measurement ranges, 120 Ipk
- Current sensor input: 3 mV - 4 Vtrms in 8 measurement ranges, 12.5 upk
Versatile high-precision power analyzer
The ZES ZIMMER LMG600 precision power analyzer series provides high-accuracy power measurements in demanding test applications. DualPath architecture enables simultaneous wideband and narrowband analysis up to 10 MHz. The analyzer precisely measures very low power, complex multi-phase and high-power systems with configurable power channels and external sensors.
A 10.1' touchscreen with intuitive user interface, built-in data logging and customizable menus simplifies operation and reduces setup times. Whether in R&D, validation or certification, the analyzer delivers consistent, traceable results for accurate power analysis.
Versatile high-precision power analyzer
The ZES ZIMMER LMG600 precision power analyzer series provides high-accuracy power measurements in demanding test applications. DualPath architecture enables simultaneous wideband and narrowband analysis up to 10 MHz. The analyzer precisely measures very low power, complex multi-phase and high-power systems with configurable power channels and external sensors.
A 10.1' touchscreen with intuitive user interface, built-in data logging and customizable menus simplifies operation and reduces setup times. Whether in R&D, validation or certification, the analyzer delivers consistent, traceable results for accurate power analysis.
