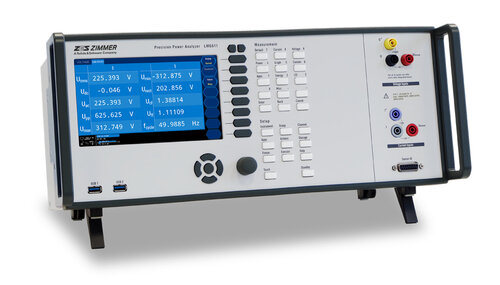

R&S LMG611-B2 Single Channel Power Analyzer: B-Channel
Measurement Channels
- Outstanding accuracy of 0.015% of measured value + 0.01% of range
- Full dynamic range of 500 µA to 32 A / 3 mV to 1000 V per channel available in single instrument
- Power measurements from standby to full load (max. 32 A) without mechanical changes
- Analog bandwidth DC up to 10 MHz
- Gapless sampling up to 18 bit and a minimal cycle time of 10 ms
- Delay time between V and I input < 3ns, very precise measurements at small power factors (PF) and/or high frequencies
Features
- Simultaneous measurement of narrow- and broadband values through innovative DualPath architecture
- Simultaneous capturing of fundamental frequency and broadband RMS values for instantaneous detection of losses, resp. high-frequency components
- Harmonics and interharmonics up to 2000. order, as required by EN61000-4-7
- With optional I/O card speed/torque inputs freely configurable for all signal types (analogue, frequency as RS422,TTL or HTL) via menu
- Flexible scripting tool for custom applications
- Signal filters freely configurable by frequency, type and characteristics
- Flicker measurement, interactions between grid and appliance according to EN61000-4-15
User-Interface
- Large and clearly arranged touchscreen GUI for intuitive handling
- All instrument features displayed, identical look-and-feel for local and remote operation for quick and easy familiarization
- Memory and Interfaces
- Internal storage of long-term measurements even with shortest cycle-time thanks to integrated mass storage device
- Excellent connectivity via USB3.0, Gbit-LAN, RS-232 and DVI
Miscellaneous
- Convenient 'plug-and-measure' through automated sensor detection
- No external sensor power supply required
- 12 months guaranteed calibration interval for minimal service cost and optimal availability
- Calibration certificate included free-of-charge in first delivery
LMG611 – Compact Single-Channel Power Analyzer
The LMG611 is a high-precision single-channel power analyzer in a compact desktop format and is considered one of the most accurate instruments in its class. It offers exceptional reliability, first-class accuracy, and an exceptionally wide frequency range—ideal conditions for precise measurement results. With a measurement accuracy of 0.015% of the measured value plus 0.01% of the range, it covers AC ranges from when it comes to operation, the desktop instrument of an R&D engineer and the rack-mounted unit in an automated test system could not be more different. Manual operation via front panel vs. remote control. On-screen evaluation vs. high-speed streaming of sample data to a central repository. Local operation is not only unnecessary, it is often undesirable and should be blocked to prevent unauthorized access or accidental 5mA to 32A and from 3V to 1000V.
Power analyses are possible from standby to fullload operation without any modifications. Thanks to a bandwidth from DC to 10 MHz, full-resolution sampling up to 18 bits, and minimum cycle times of 10 ms, the device delivers fast and precise results. This is complemented by flexible filters, scripting functions, and comprehensive visualizations. The device is conveniently operable via touchscreen, while numerous interfaces and integrated memory ensure convenient data acquisition and further processing.
The innovative DualPath architecture enables the simultaneous measurement of narrowband and wideband values as well as the analysis of harmonics up to
the 2000th order. This is complemented by flexible filters, scripting functions, and comprehensive visualizations.
LMG600 Power Channels – A, B, C or S?
Power analyzers are available in different accuracy classes, to allow the user to choose the right tool for the job at hand. After all, not all applications require maximum precision; often lower resolution and frequency range are sufficient. Unfortunately, not all measuring applications exhibit this distinction. It is very well possible, for instance, to have need for different frequency ranges and accuracy levels at different points in the same measurement configuration.
This is why the LMG600 offers four different channel types, which can be combined in the same chassis without problems to ensure that you always have a measuring device tailored to your needs for your particular application. No need to accept trade-offs in accuracy or take a sledgehammer to crack a nut, if a lower priced solution could have served your purposes equally well.
LMG611 – Compact Single-Channel Power Analyzer
The LMG611 is a high-precision single-channel power analyzer in a compact desktop format and is considered one of the most accurate instruments in its class. It offers exceptional reliability, first-class accuracy, and an exceptionally wide frequency range—ideal conditions for precise measurement results. With a measurement accuracy of 0.015% of the measured value plus 0.01% of the range, it covers AC ranges from when it comes to operation, the desktop instrument of an R&D engineer and the rack-mounted unit in an automated test system could not be more different. Manual operation via front panel vs. remote control. On-screen evaluation vs. high-speed streaming of sample data to a central repository. Local operation is not only unnecessary, it is often undesirable and should be blocked to prevent unauthorized access or accidental 5mA to 32A and from 3V to 1000V.
Power analyses are possible from standby to fullload operation without any modifications. Thanks to a bandwidth from DC to 10 MHz, full-resolution sampling up to 18 bits, and minimum cycle times of 10 ms, the device delivers fast and precise results. This is complemented by flexible filters, scripting functions, and comprehensive visualizations. The device is conveniently operable via touchscreen, while numerous interfaces and integrated memory ensure convenient data acquisition and further processing.
The innovative DualPath architecture enables the simultaneous measurement of narrowband and wideband values as well as the analysis of harmonics up to
the 2000th order. This is complemented by flexible filters, scripting functions, and comprehensive visualizations.
LMG600 Power Channels – A, B, C or S?
Power analyzers are available in different accuracy classes, to allow the user to choose the right tool for the job at hand. After all, not all applications require maximum precision; often lower resolution and frequency range are sufficient. Unfortunately, not all measuring applications exhibit this distinction. It is very well possible, for instance, to have need for different frequency ranges and accuracy levels at different points in the same measurement configuration.
This is why the LMG600 offers four different channel types, which can be combined in the same chassis without problems to ensure that you always have a measuring device tailored to your needs for your particular application. No need to accept trade-offs in accuracy or take a sledgehammer to crack a nut, if a lower priced solution could have served your purposes equally well.
