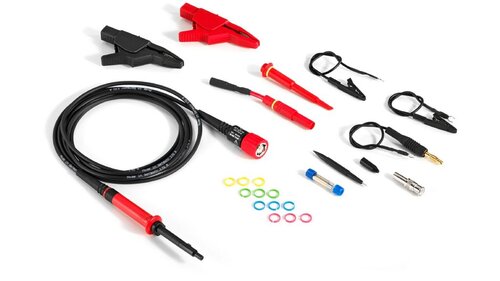

R&S RT-ZH11 400MHz high voltage probe, passive, 1000x, 50MOhm, 7.5pF, 1kVrms
RT-ZH11 400MHz high voltage probe, passive, 1000x, 50MOhm, 7.5pF, 1kVrms, 4kVtrans, 2m cable, including standard accessory
Rohde & Schwarz offers the RT-ZH11 probe with a division ratio of 1000: 1 for mass-related measurements at high voltages. Depending on the input voltage to be measured, the probe with the optimal pitch can be selected for maximum sensitivity. The division ratio is automatically recognized on Rohde & Schwarz oscilloscopes.
The oscilloscope probe is designed for effective voltages up to 1000 V (CAT II) and - for pulse measurement only - for peak voltages up to 6000 V (CAT I). The accessories include safety crocodile clips, fixed and springy measuring tips and safety caps.
- Bandwidth: 400 MHz
- Rise time:> 900 ps
- Input impedance: 50 M? II 7.5 pF
- Input divider: 1000: 1
- Max. Voltage: 4,000 Vrms
- LF compensation: 1 trimmer
- HF compensation: 1 trimmer
- Cable length: 2 m
- Connection: BNC with read-out
- Division factor detection: automatically after plugging in
- Measurement category: CAT II
For more information download the Probes and Accessories Catalog:
