R&S RTC-K2 UART/RS232 serial triggering and decoding for RTC1002 (software license)

UART/RS-232/RS-422/RS-485 trigger/decode option, for oscilloscopes RTC1000 (1335.7246.03)

All Rohde & Schwarz oscilloscopes support triggering and decoding of UART and of RS-232, RS-422 and RS-485 buses. You set up decoding in seconds. For detailed analysis, results can be viewed as color-coded telegrams and / or in a table. Errors are identified efficently and reliably using the hardware-accelerated trigger. You can trigger on start, break, data and various error conditions.

Key Features & Specifications:

• Trigger on start, break, data and various error conditions

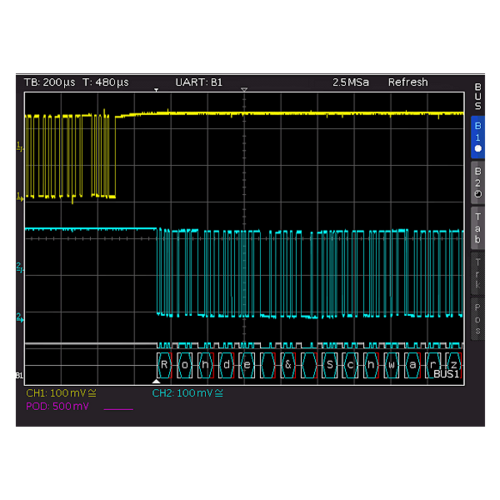

• Telegram display as color-coded bus signals and in decode table
• Supports decoding of up to 4 serial buses from analog or digital channel signals
• On-screen serial decoding is time-correlated with the serial data waveform
• Fastest UART and RS-232 / RS-422 / RS-485 eye-diagram mask testing with standard mask test functionality
