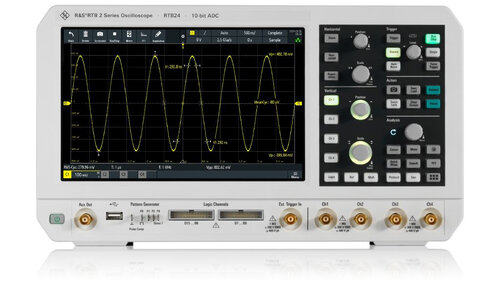

R&S RTB2004 Digital 4 channel oscilloscope, 70 MHz bandwidth (upgradable up to 300 MHz) up to 2,5 GSa/s, up to 20MSa, 10 bit
Key Features and Functions
- Bandwidth: 70 MHz to 300 MHz
- 4 channels
- Sampling rate: up to 2.5 Gsample / s
- Memory depth: up to 20 Msample
- A / D converter resolution: 10 bit
- Display: 10.1 'capacitive touchscreen
RTB2004 Oscilloscope, 4 channels, touch display, USB, LAN, 70 MHz (opt. up to 300), 1.25 GSa/s, 10 bit, 10MPts (1333.1005.04)
Thanks to the 'Power of Ten' (10-bit A / D converter, 10 Msample memory and 10.1 'touchscreen) and intelligent operating concepts, the RTB2000 oscilloscope is the perfect tool for troubleshooting in embedded designs, for university laboratories and for production and service departments.
The largest display (10.1 ') with the highest resolution in this class (1280 × 800 pixels) works exactly like your smartphone. It offers a capacitive touchscreen for quick navigation in pop-up menus and a touch function for easy scaling adjustment Zoom or move a waveform.
The 10-bit A / D converter offers up to a fourfold improvement over conventional 8-bit A / D converters. You get sharper measurement curves with more signal details.
A memory depth of 10 Msample is available if all channels are active. In the interleaved mode, even 20 Msample are available. This is ten times more than comparable competing devices. Longer signal sequences can therefore be recorded and more detailed analysis results can be achieved.
With the RTB2000 you get more than just an oscilloscope. The device includes a logic analyzer, protocol analyzer, waveform and pattern generator and a digital voltmeter. Special operating modes for frequency analysis, mask tests and long-term detection are integrated. Troubleshooting electronic systems of all kinds is simple and effective - and thus protects your investments at an extremely attractive price.
RTB2004 Oscilloscope, 4 channels, touch display, USB, LAN, 70 MHz (opt. up to 300), 1.25 GSa/s, 10 bit, 10MPts (1333.1005.04)
Thanks to the 'Power of Ten' (10-bit A / D converter, 10 Msample memory and 10.1 'touchscreen) and intelligent operating concepts, the RTB2000 oscilloscope is the perfect tool for troubleshooting in embedded designs, for university laboratories and for production and service departments.
The largest display (10.1 ') with the highest resolution in this class (1280 × 800 pixels) works exactly like your smartphone. It offers a capacitive touchscreen for quick navigation in pop-up menus and a touch function for easy scaling adjustment Zoom or move a waveform.
The 10-bit A / D converter offers up to a fourfold improvement over conventional 8-bit A / D converters. You get sharper measurement curves with more signal details.
A memory depth of 10 Msample is available if all channels are active. In the interleaved mode, even 20 Msample are available. This is ten times more than comparable competing devices. Longer signal sequences can therefore be recorded and more detailed analysis results can be achieved.
With the RTB2000 you get more than just an oscilloscope. The device includes a logic analyzer, protocol analyzer, waveform and pattern generator and a digital voltmeter. Special operating modes for frequency analysis, mask tests and long-term detection are integrated. Troubleshooting electronic systems of all kinds is simple and effective - and thus protects your investments at an extremely attractive price.
