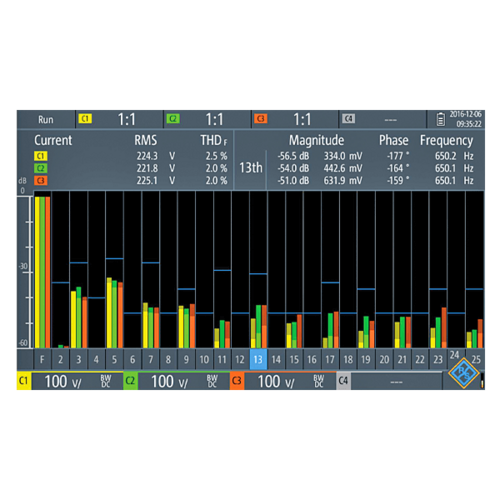

R&S RTH-K34 Harmonic analysis function for RTH1002 and RTH1004 (software license)

Harmonic analysis option, for oscilloscopes Scope Rider RTH

Harmonics of the network frequency within a supply voltage network can lead to unforeseen disturbances in electronic systems. These harmonics are caused by non-linear electronic loads. Finding these harmonics is both a challenge and a necessity to guarantee proper system behavior. With the RTH-K34 option, harmonics can be automatically discovered and quantized according to the EN50160 guideline or according to user-specific limits.

Another application is to observe and verify current harmonics in clocked power supply units / modules.
