R&S FPC-Z10, RF Teaching Kit (accessory)
R&S FPC-B2, Spectrum Analyzer Frequency Upgrade 1GHz - 2GHz (software license)
- Teaching kit consisting of hardware, software and teaching material
- For demonstration with the spectrum analyzer FPC1500 (5 kHz to max. 3 GHz) including vector network analyzer and signal generator
- Universal circuit board with up / down converter, power supply unit, calibration unit (open, short, match, through), DC / DC converter, IQ modulator / demodulator, local oscillator
- Power supply: 5 V ± 10%, mini / micro USB
- Dimensions: W 207 mm x H 131 mm x D 31 mm
- Weight: 260 g
For more information download the FPC Brochure:

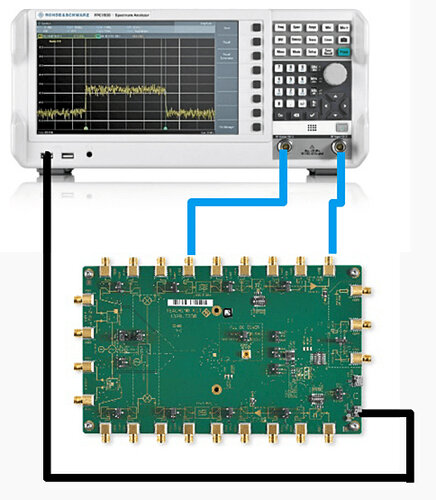

The FPC-Z10 teaching kit from Rohde & Schwarz is a device under test (DUT) for demonstrating basic RF measurements with the FPC1500 spectrum analyzer (5 kHz to max. 3 GHz). With the training kit consisting of hardware and software, trainees and students get to know the most important functions of spectrum analysis, network analysis and signal generation. The demoboard offers the right RF components for your laboratory environment: up / down converter, power supply, calibration unit, DC / DC converter, IQ modulator / demodulator and local oscillator. Accompanying exercise sheets offer step-by-step instructions on how to use the spectrum analyzer competently.
The FPC-Z10 teaching kit from Rohde & Schwarz is a device under test (DUT) for demonstrating basic RF measurements with the FPC1500 spectrum analyzer (5 kHz to max. 3 GHz). With the training kit consisting of hardware and software, trainees and students get to know the most important functions of spectrum analysis, network analysis and signal generation. The demoboard offers the right RF components for your laboratory environment: up / down converter, power supply, calibration unit, DC / DC converter, IQ modulator / demodulator and local oscillator. Accompanying exercise sheets offer step-by-step instructions on how to use the spectrum analyzer competently.
