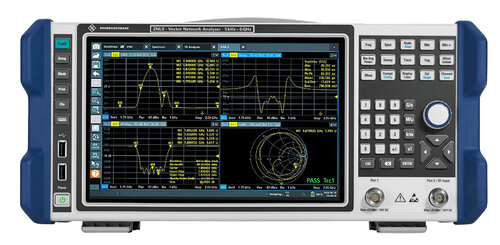

R&S ZNL20 Vector Network Analyzer, 2 ports 5 kHz to 20 GHz, 3.5 mm(m) connectors

Key Features and Functions

  • Frequency range: 5 kHz to 20 GHz
  • Dynamic range:> 120 dB (specified); typ.> 130 dB
  • Output power: 0 dBm (specified); typ. + 3 dBm
  • Measurement parameters: S parameters (Sxy), wave sizes, wave ratios, impedance parameters (Zxy), admittance parameters (Y), stability factors
  • Operating system: Windows 10
  • Display: 10.1 ”WXGA color LCD, touchscreen
  • Dimensions (W × H × D): 408 mm × 186 mm × 235 mm
  • Weight (depending on configuration): ~ 6 - 8 kg

For more information download the ZNL Brochure:

Price

kr 260.022*
* excluding VAT free shipping (Denmark)

Product Number:

RS-1323_0012_20

Manufacturer:

Rohde & Schwarz

Quantity:

Total
Unit price
Base Price
Availability:
Call or email for delivery time

Key Features and Functions

  • Frequency range: 5 kHz to 20 GHz
  • Dynamic range:> 120 dB (specified); typ.> 130 dB
  • Output power: 0 dBm (specified); typ. + 3 dBm
  • Measurement parameters: S parameters (Sxy), wave sizes, wave ratios, impedance parameters (Zxy), admittance parameters (Y), stability factors
  • Operating system: Windows 10
  • Display: 10.1 ”WXGA color LCD, touchscreen
  • Dimensions (W × H × D): 408 mm × 186 mm × 235 mm
  • Weight (depending on configuration): ~ 6 - 8 kg

For more information download the ZNL Brochure:

  • ZNL Handheld Vector Network Analyzer Brochure
  • ZNL Handheld Vector Network Analyzer Specification Guide
