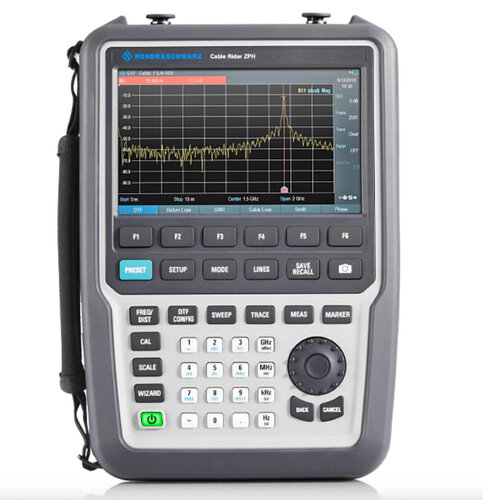

R&S ZPH-12 Cable Rider, Handheld cable and antenna analyzer, combi (2 port) model, 5 kHz to 3 GHz
Key Features and Functions
- Frequency range: 2 MHz to 3 GHz, optionally up to 4 GHz, easy to initialize using a license code
- DTF (Distance to Fault), reflection loss measurement, VSWR (Voltage standing Wave Ratio) and one-port cable loss measurements
- Measurement wizard for fast and error-free measurements
- Ideal for measurements in the field: 9-hour battery capacity
- Illuminated keypad
- Short boat duration
- Non-reflective, capacitive color touchscreen
- Small and robust housing (IP51): width: 202 mm × height: 294 mm × depth: 76 mm
- Simple and cost-effective option upgrades thanks to software-based license code
- Weight: 2.5 kg
For more information download the ZPH Brochure:
ZPH Cable and antenna analyzer Cable Rider, handheld, 2 MHz to 3 or 4 GHz
The R&S®Cable Rider ZPH has all the essential basic measurement capabilities required for installing and maintaining antenna systems in the field. Its unique features ensure fast and efficient cable and antenna measurements and spectrum analysis. The easy-to-use analyzer features a touchscreen and large keypad designed for field use.
Two different R&S®ZPH models are available to suit different needs, a pure one-port cable and antenna analyzer and a two-port model with additional spectrum analysis and tracking generator features.
With its short boot and warm-up times and fast measurement speed, the R&S®Cable Rider ZPH gets down to analyzing extremely fast. Measurement setups can be predrawn and settings preconfigured. Thanks to the wizard function, fast and accurate measurements are performed in a single step. Generating measurement reports is easy with the R&S®InstrumentView software.
There is no need to calibrate the analyzer before use. It is reliably and accurately calibrated before leaving the factory. Should calibration be needed to eliminate the effects of additional cables or adapters used to connect the analyzer to the device under test (DUT), the R&S®ZN-Z103 automatic calibration unit performs the calibration in just one step. Backlit keypad for operation in dim environments.
The battery lasts up to an entire work day on just one charge. The keypad is illuminated to facilitate working in dim environments. The leading-edge capacitive touchscreen of the R&S®Cable Rider ZPH is changing the way users interact with an analyzer – simply touch the screen to add markers and change settings. These features and the ergonomic design make the R& S®Cable Rider ZPH ideal for fast and efficient on-site measurements.
