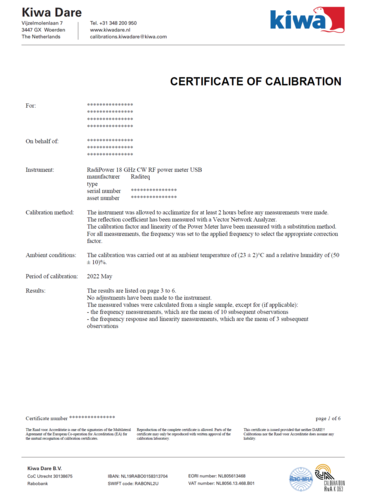

Raditeq GEN017FQ ISO17025 accredited (RvA) calibration certificate for RadiGen 400Mhz

ISO17025 accredited (ILAC/RvA) calibration certificate for RadiGen® signal generator

SO17025 accredited (ILAC/RvA) calibration certificate for RadiGen® signal generator calibrated at Kiwa Dare Calibration in accordance to the following calibration procedure:

Calibrated under RvA accreditation:

• Reflection coefficient
• Frequency Response Linearity
• Amplitude +10dBm to -25dBm / -20dBm to -60dBm
• Frequency internal reference Frequency
• AF output internal standard
• Frequency RF output internal/external standard

Calibrated not under RvA accreditation:

• Harmonics FM; AM; PM accuracy FM; AM; PM distortion

Remarks:

When a signal generator has a reverse power protection installed; the input reflection can’t be calibrated due to the protection circuit.

Not calibrated:

• Pulse Modulation
• Phase Noise
• Residual FM
