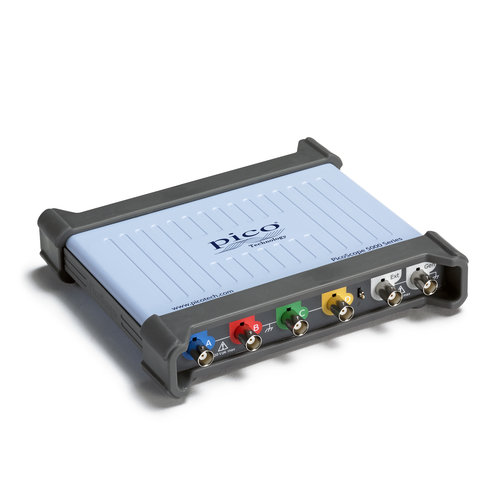

PicoScope 5442D 60 MHz 4 channel oscilloscope

additional images:

Flexible Resolution USB Oscilloscope

  • 4 analog channels
  • FlexRes 8 to 16-bit hardware resolution
  • 60 MHz analog bandwidth
  • 1 GS/s sampling at 8-bit resolution
  • 62.5 MS/s sampling at 16-bit resolution
  • 128 MS capture memory
  • 130 000 waveforms per second
  • Built-in arbitrary waveform generator
  • 18 serial decoding protocols as standard
  • Build-in spectrum analyzer
Price

kr 12.050*
* excluding VAT free shipping (Denmark)

Product Number:

PICO-PQ146

Manufacturer:

Picotech

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

Flexible Resolution USB Oscilloscope

Today’s electronic designs employ a wide range of signal types: analog, digital, serial (both high- and low-speed), parallel, audio, video, power distribution and so on. All need to be debugged, measured and validated to ensure that the device under test is functioning correctly and within specification.

To handle this variety of signal types, PicoScope 5000D FlexRes hardware employs multiple high-resolution ADCs at the input channels in different time-interleaved and parallel combinations to optimize either the sampling rate to 1 GS/s at 8 bits, the resolution to 16 bits at 62.5 MS/s, or other combinations in between – you select the most appropriate hardware resolution for the requirements of each measurement.

2 and 4 channel models are available, all featuring a SuperSpeed USB 3.0 connection, providing lightning-fast saving of waveforms while retaining compatibility with older USB standards. The PicoSDK® software development kit supports continuous streaming to the host computer at rates up to 125 MS/s. The product is small and light, and operates silently thanks to its low-power fanless design.

Supported by the free-of-charge and regularly updated PicoScope 6 software, the PicoScope 5000D Series offers an ideal, cost-effective package for many applications, including design, research, test, education, service and repair.

What is FlexRes?

Pico FlexRes flexible resolution oscilloscopes allow you to reconfigure the scope hardware to increase either the sampling rate or the resolution. This means you can reconfigure the hardware to be either a fast (1 GS/s) 8-bit oscilloscope for looking at digital signals, or a high-resolution 16-bit oscilloscope for audio work and other analog applications. Whether you’re capturing and decoding fast digital signals or looking for distortion in sensitive analog signals, FlexRes oscilloscopes are the answer.

PicoScope 5000D zoomed in on a PAL color burst video signal.

Deep capture memory

PicoScope 5000D Series oscilloscopes have waveform capture memories ranging from 128 to 512 million samples – many times larger than traditional benchtop scopes. Deep memory enables the capture of long-duration waveforms at maximum sampling speed. In fact, the PicoScope 5000D Series can capture waveforms over 500 ms long with 1 ns resolution. In contrast, the same 500 ms waveform captured by an oscilloscope with a 10 megasample memory would have just 50 ns resolution.

Other tools, such as DeepMeasureTM, serial decoding and hardware acceleration work with the deep memory, making the PicoScope 5000D Series among the most powerful oscilloscopes on the market.
