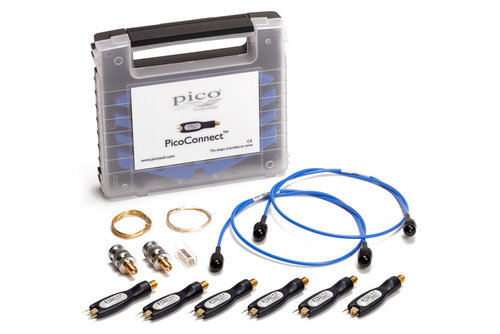

PicoConnect 910 Kit: all six 4 to 5 GHz RF, microwave and pulse probe head models with cables
6 Passive Probes for the Price of 4
The best compromise of impedance, division ratio and coupling is available with our 6 probe kit, including
- Six PicoConnect 910 Series probe heads
- Two precision 60 cm 085 low-loss cables
- Two SMA-to-BNC adaptors (with RF and Microwave models only)
- Quick Start Guide
- Set of replacement gold-plated probe and ground tips
- Two coils of solder-in gold-plated wire
- Storage and carry case
Features
Explore the cutting-edge PicoConnect 910 Series RF passive probes, meticulously designed for high-frequency RF applications up to 5 GHz. These oscilloscope probes deliver unparalleled performance and versatility tailored specifically for RF and microwave testing needs.
Interchangeable probe heads at division ratios of 5:1, 10:1 and 20:1, AC or DC-coupled
- Up to 5 GHz bandwidth
- Less than 70 ps transition time
- Extremely low loading capacitance of < 0.3 pF typ., 0.4 pF upper test limit
- Accurate probing of high speed transmission lines for Z0 = 0 Ω to 100 Ω
- Stated probe ratio compensated to correct for loading of low-impedance probe input
- Class-leading uncorrected pulse/eye response and pulse/eye disturbance.
- Passive design gives high dynamic range, low noise, linearity and long-term flatness
