Keysight N9063EM0E Analog Demodulation Measurement Application

Signal analysis

  • Display modulation metrics such as AM depth, FM deviation, PM deviation, total harmonic distortion (THD), and signal to noise distortion ratio (SINAD), FM Stereo (left to right ratio, mono to stereo ratio, 38 kHz pilot frequency and phase error)
  • Analyze analog modulated signals with a selection of detectors: Peak+, Peak-, (Pk-Pk)/2 and RMS

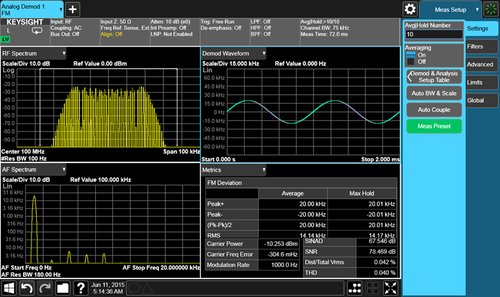

  • View RF spectrum, demodulated waveform, AF (modulating signal) spectrum, and demodulation metrics table at the same time with quad view; view MPX, mono, stereo, left and right channel and RDS/RBDS decoding of FM stereo signal; view transmitter 'attach/release' timing
  • Play the modulating signal over a speaker (sometimes referred to as “tune and listen”)

Measurements

  • Modulation analysis for AM, FM, PM and FM Stereo signals with information bandwidth up to 160 MHz
  • One-button measurements
  • Supplies most complete set of post-demodulation filters
  • Runs inside UXA signal analyzers

Performance (hardware dependent)

  • AM depth accuracy: ± (0.1% x reading + 0.05%); AM rate accuracy: ± [(2.5 ppm x reading) x (100% / depth)]
  • FM deviation accuracy: ± ?0.3% x reading + 0.15% x rate?; FM rate accuracy: ± (0.008% x reading)
  • PM deviation accuracy: ± (0.1% x reading + 2 mrad); PM rate accuracy: &p lusmn;(0.008 Hz / deviation + 0.003 Hz)
  • FM Stereo SINAD up to 71 dB and left to right ratio up to 76 dB with CCITT filter

Other features

  • License key upgradable
  • Fixed and transportable license available
  • SCPI remote user interface
  • Supports analog output

Documents and Software Solutions:

Product Number:

N9063EM0E

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

Gain More Insight Into Device Performance with Intuitive Graphs and Trusted Results

Supports 25+ different measurement applications covering cellular, wireless connectivity, broadcast radio/audio, aerospace/defense and general purpose industries with phase noise, noise figure, pulse, EMI - to the latest standards-compliant wireless measurements

Ensure Designs Meet Latest Standards

Trust that the measurement results are current with the latest emerging technologies. Keysight’s involvement in and leadership role in standards committees ensures that X-series measurement application is at the forefront of evolving standards like IoT, 5G and WLAN

Share Same Measurement Science and Expertise Across Multiple Hardware Platforms

Support from bench-top spectrum analyzers to modular instruments covering from high-end performance, benchmark, economy to low-cost purpose making you get the consistent measurement results across the product whole lifecycle across R&D, design, verification and production

Flexible Choices of License Types and License Terms on Your Budget Plan

Offer four different kinds of license types as node-locked, transportable, network/floating and USB portable with flexible license terms as perpetual or 12-month. Further 1 year of support is bundled for first-time purchase which can be extended monthly on your demand
