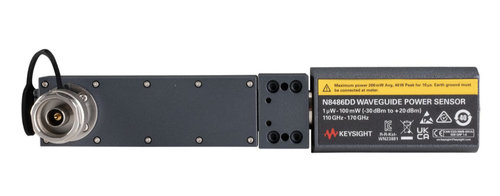

Keysight N8486DD 110 to 170 GHz Waveguide Power Sensor

Key Features and Functions

• Enables precise and direct waveguide measurements in the D-band frequency range using a WR-06 flange connector
• Covers an extensive frequency range from 110 to 170 GHz (D-band).
• Offers dynamic range from -30 to +20 dBm (Option 100 for continuous wave, CW and Average power measurements).
• Provides wider dynamic range from -52 to +10 dBm (Option 200). Measuring Average power from -52 to -10 dBm, and CW power from >-10 to +10 dBm.
• Compatibles with Keysight N1913 / 14A EPM-Series and N1913 / 14B EPM-Series Power Meters.
• Delivers a complete frequency and power coverage for source power calibration measurements up to 170 GHz.
• Supplies an extended dynamic range of -52 to +10 dBm and a built-in erasable programmable read-only memory (EEPROM) that stores the calibration factors for Option 200.
