LN-Course - Electronics 8: Switched mode power supplies
Includes:

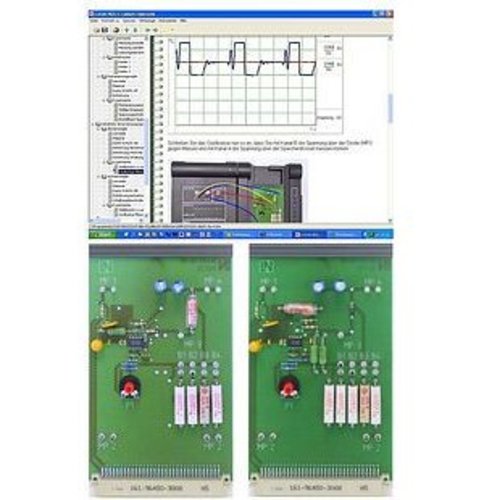

- 1 Experiment card with step-down DC/DC converter on switching regulator IC and load resistors
- 1 Experiment card with step-up DC/DC converter on switching regulator IC and load resistors
- D-ROM with Labsoft browser and course software
Course contents:
- introduction to design and function of switched-mode power supplies (DC/DC converters)
- Measurement of adjustment range and load dependency of step-down DC/DC converters
- Analysis of step-down DC/DC converter by measuring signal output over time
- Measurement of adjustment range and load dependency of step-up DC/DC converters
- Analysis of step-up DC/DC converter by measuring signal output over time
- Course duration 2 h approx.
