LN-Course - Electrical engineering 2: AC technology
Includes:

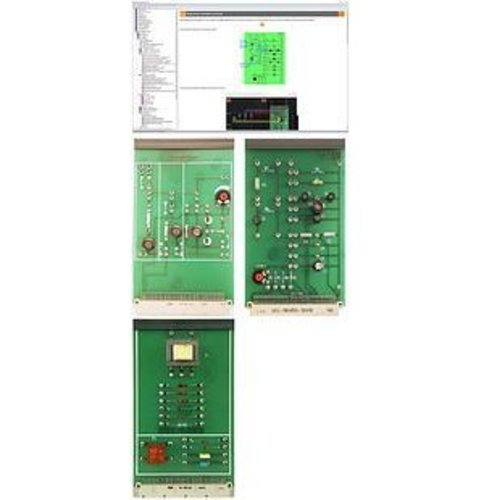

- 1 Experiment card with R, L, C passive components for combination using 2-mm sockets
- 1 Experiment card with RLC resonant circuits, 1 circuit tunable
- 1 Experiment card with 1 power transformer, 1 repeater transformer and load circuits
- CD-ROM with Labsoft
- browser and course
- software
Course contents:
- The distinction between DC and AC variables
- Characteristics of sinusoidal signals
- RMS values of various periodic signals
- Using vector diagrams to depict sinusoidal signals
- Using vector diagrams for computation
- Introduction to characteristic parameters for capacitors and inductors
- How capacitors and coils store energy
- Determining the capacitance of capacitors by measurement
- Determining the inductance of coils by measurement
- Introduction to the term reactance and the difference between capacitive reactance and inductive reactance
- Determining the reactance of coils and capacitors by experiment
- Investigating the AC-response of RC and RL voltage divider circuits
- Investigating the frequency response of simple filter circuits for alternating and square-wave voltages
- How electrical resonant circuits work
- Introduction to the terms resonance, quality Q, bandwidth and critical frequency of resonant circuits
- Measuring the frequency response of series and parallel resonant circuits
- Tuning a parallel resonant circuit with a varicap diode
- Explanation of the terms active, reactive and apparent power
- Investigatingr esponse of transformers to loads: loaded, unloaded and short-circuit measurements
- Identifying the typical areas of application for power and repeater transformers
- Measurement and analysis of the frequency response of power transformers
- Investigating the frequency response of repeater transformers
- Measurement and analysis of the frequency response of repeater transformers
- Fault simulation (4 simulated faults activated by relay)
- Course duration 8 h approx. (fault finding 1 h approx.)
Stock
Call or email for delivery time
The UniTrain System
- Computer-based training and experimentation system for vocational and further training and education
- Multimedia combines cognitive and hands-on (haptic) training units into a comprehensive unified concept
- Areas of basic and advanced electrical engineering, electronics and automotive technology
- Enabling students to acquire skills in the handling of equipment
- Wide range of multimedia courses available for study in school or in professional and advanced training
- Self-contained and usable anywhere at any time
- Multimedia learning environment with high degrees of motivation
- Maximum learning effectiveness in laboratories, at work or at home
- Guarantor for effective and efficient study
- Instruments with virtual display together with experiment hardware
- LabSoft, an open experiment delivery platform
- Courses teach the theoretical building blocks and provide experiments
- Intelligent measurement interface supplies analog and digital measuring and control I/O
- High quality item of laboratory equipment with virtual instruments
- Students' progress monitored and electronically documented on the basis of fault finding experiments
- Faults simulated by the hardware as well as tests of knowledge
