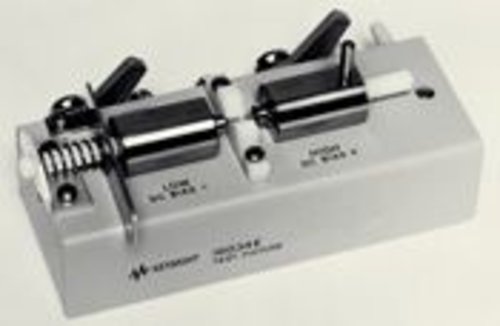

Keysight 16034E SMD test fixture
- Measurement Instruments: 4192A, 4194A(Impedance Mode), 4263B, 4278A, 4279A, 4284A, 4285A, 4294A, E4980A
- Frequency: DC to 40MHz
- DC Bias:+/- 40V peak max (AC+DC)
- Operating Temperature: 0 to 55 degrees C
- Terminal Connection: BNC, 4 terminal-pair
- Dimensions(approx.): 128(W) x 60(H) x 71(D)mm
- SMD Test Fixture Selection Table
Stock
Typically on stock
Expected Delivery Time:
2 Days from Keysight Inventory
2 Days from Keysight Inventory
The 16034E test fixture is designed for impedance evaluations of SMD components. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm].
