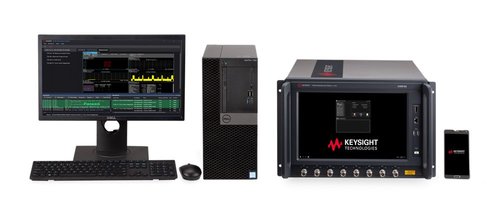

Keysight S8702A RF Automation Toolset
Key Features and Specifications
RF Automation Toolset provides automated RF Transmitter and Receiver tests for 5G, LTE and C-V2X, based on the 3GPP-defined test specifications but optimized for speed of execution
The S8702A RF Automation Toolset extends the capabilities of the 5G Test Application by providing:
- An intuitive and easy-to-use graphical user interface for creating, configuring and running test campaigns
- A suite of fully-automated RF Transmitter and Receiver tests, based on the 3GPP TS 38.521 test specifications for 5G New Radio (NR), and on 3GPP TS 36.521 for LTE Advanced
- Optimized test execution times, enabling rapid inspection of the RF performance of 5G NR devices
- A report generator to summarize the results of test campaigns
- Support for both NSA and SA 5G modes in the same network emulator, providing a small footprint benchtop solution
- State-of-the art logging, visualization and debugging tools
- Flexible licensing options and tools
The toolset is based on:
- Keysight E7515B UXM 5G Wireless Test Platform: emulates the 5G network
- Keysight’s Test Application Framework Software: provides control of the UXM 5G network emulator
- Keysight’s X-Series Measurement Software: provides ready-to use measurements for signal analysis
- Keysight’s E7770A Common Interface Unit, M1740A mmWave Transceiver and mmWave OTA chambers: extend testing range to the mmWave frequencies (FR2)
More Information:
When developing new 5G devices, RF design engineers require access to tools that enable them to rapidly inspect and verify the transmitter and receiver performance of their devices. This allows them to identify and focus on areas where performance is sub-optimal and quickly retest when the issue has been rectified.
Keysight’s RF Automation Toolset addresses this need by providing a suite of RF transmitter and receiver tests based on the relevant 3GPP test specifications. These tests are optimized for speed and designed to run on a benchtop platform, allowing each engineer to have a dedicated test system on their own desk. Combined with Keysight’s sophisticated logging and debugging tools, the toolset enables design verification engineers to accelerate the transformation of new 5G devices from prototypes to commercial products.
