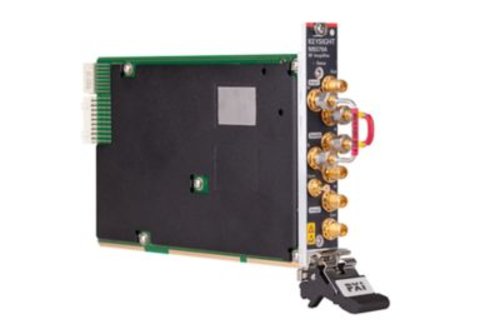

Keysight M9379A RF amp module
- Dual amplifiers (programmable gain and fixed gain)
- Fast path control with built-in solid-state switches
- > +21 dBm saturated output power at 3 GHz (typ.)
- > 25 dB forward gain at 3 GHz (typ.)
- < 5 dB noise figure at 3 GHz (typ.)
The M9379A RF Amp Module includes two amplifiers, RF switches, and a programmable step attenuator designed to operate with the M9485A PXIe vector network analyzer (VNA).
The input and output ports of internal components inside the M9379A can be accessed with the test ports on the front panel, so you can configure your test systems using the 1-slot module.
When combined with the direct receivers and high-power coupler in the M9485A, the M9379A can improve the noise floor of the measurement system. For example, the system dynamic range can be increased with the VNA system, making it an ideal solution for high-rejection filter measurements.
