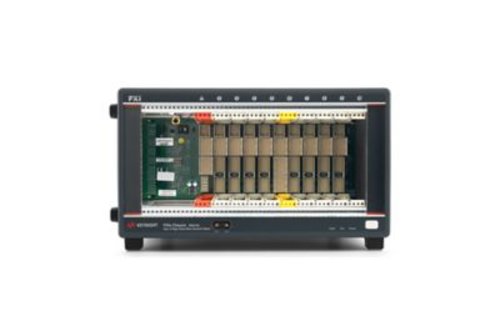

Keysight M9010A PXIe Chassis: 10-slot, 3U, 24GB/s
Applications
- Aerospace and Defense
- Electronic test
- Communications
Functionality
- 10 total slots; including PXIe controller and timing module slots
- 8 PXIe Hybrid Slots
- 830 W total DC power (220-240V input) and 42 W/ slot cooling
Performance characteristics
- Advanced PCIe switch fabric that operates up to Gen 3 speeds and provides x8 links to module slots
- Backplane speeds of up to 24 GB/s from an external controller to the PXIe module slots
- Ultra-quiet, high capacity cooling
The M9010A PXIe 10-slot Gen 3 chassis delivers flexibility, compatibility, and performance in a smaller form-factor ideal for bench-top applications. With 8 PXIe hybrid slots, it gives the system designer flexibility to mix and match the number and location of PXIe and hybrid-compatible modules. The maximum performance, PCIe® switch fabric can operate up to Gen 3 providing up to 24 GB/s of system data bandwidth. The new cooling design provides exceptional per-slot cooling while at the same time producing much less fan noise than the typical PXI chassis. It is also designed for easy maintenance and has features for combining multiple chassis together or integrating with other non-PXI instrumentation.
