Keysight PNT3D4100 Sim3D Multipath Simulation Software
Highlights

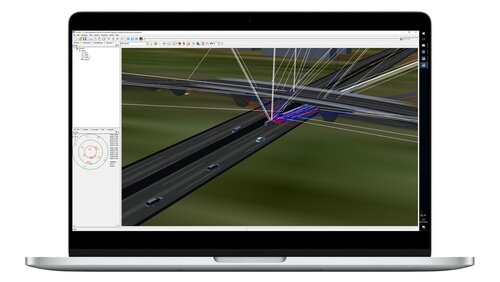

Sim3D uses deterministic ray tracing within synthetic 3D environments to simulate real-time GNSS multipath and obscuration effects under controlled, repeatable conditions.
Multipath and signal simulation
- Simulate up to 31 multipath signals per line of sight (LOS) with up to 6 reflections per signal
- Manipulate signal code, carrier, and power based on interaction with the 3D environment
- Support all constellations, frequencies, and codes currently simulated by Keysight
- Run both static and dynamic scenarios with dynamic trajectory generation
3D environment modeling
- Generate custom 3D models or import externally created models and objects
- Access multiple pre-built 3D environments
- Support scene sizes up to 5 km
Sim3D builds detailed 3D GNSS environments with proven realism for advanced multipath and obscuration testing, using PNT X and GSS7000 simulators.
