Key Features and Functions

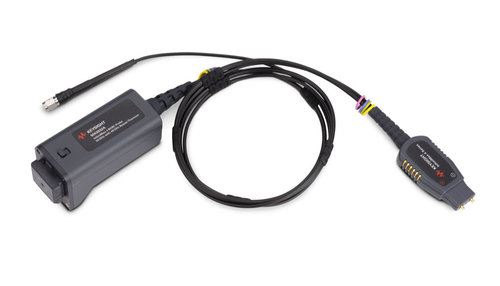

The MX0040A probe head connector is part of an innovative modular probe head system for the InfiniiMax 4 probe system
- The MX0040A InfiniiMax 4 Probe Head Connector is required to connect an InfiniiMax 4 probe head to an InfiniiMax 4 series probe amplifier
The InfiniiMax 4, Keysight's latest probe system, offers an impressive bandwidth capacity of up to 52 GHz. Achieving this level of performance required the development of an innovative modular probe head system, featuring a flexible printed circuit (FPC) probe head. This unique system comprises the MX0040A probe head connector and two FPC probe heads of varying lengths (MX0041A and MX0042A), catering to diverse testing needs.
The MX0040A InfiniiMax 4 Probe Head Connector is required to connect an InfiniiMax 4 probe head to an InfiniiMax 4 series probe amplifier
Procedure:
- Loosen the three screws on top of MX0040A connector.
- Insert the InfiniiMax 4 Solder-in probe head (MX0041A or MX0042A) into the connector by gently sliding it between the top and center pieces of the connector.
Note: T6 screwdriver (not included) is required to loosen the three screws on top of the MX0040A connector.
Note: T4 screwdriver (not included) is required to connect to the mounting cradle that suits your testing requirements.
The InfiniiMax 4, Keysight's latest probe system, offers an impressive bandwidth capacity of up to 52 GHz. Achieving this level of performance required the development of an innovative modular probe head system, featuring a flexible printed circuit (FPC) probe head. This unique system comprises the MX0040A probe head connector and two FPC probe heads of varying lengths (MX0041A and MX0042A), catering to diverse testing needs.
The MX0040A InfiniiMax 4 Probe Head Connector is required to connect an InfiniiMax 4 probe head to an InfiniiMax 4 series probe amplifier
Procedure:
- Loosen the three screws on top of MX0040A connector.
- Insert the InfiniiMax 4 Solder-in probe head (MX0041A or MX0042A) into the connector by gently sliding it between the top and center pieces of the connector.
Note: T6 screwdriver (not included) is required to loosen the three screws on top of the MX0040A connector.
Note: T4 screwdriver (not included) is required to connect to the mounting cradle that suits your testing requirements.
