Keysight D9042DPPC DisplayPort UHBR Tx Compliance Test Software
Features
- Covers DisplayPort UHBR10, UHBR13.5 and UHBR20
- Supports DP, mDP and USB-C© connectors
- Cable and test fixture embedding and de-embedding for accurate measurements
- Test report generation in HTML and PDF formats
Usability
- Setup wizard for guided configuration and test selection
- Configurability of test parameters to support debug and characterization tasks
- Switching solution for automated multilane testing
- Remote programming toolkit to integrate in test automation environments
Use the Keysight D9042DPPC DisplayPort UHBR Tx Test Software to test, debug and characterize your DisplayPort Source products at UHBR speeds. The application automates the complex test procedures and result validation, maximizing test instrument throughput and reducing test time.
Comprehensive Test Coverage
DisplayPort electrical testing is a complex task as it requires the connection of the product under test to the test instrument with specific test point access fixtures, the configuration and execution of advanced measurements and, finally, the evaluation of test results against the limits described in the specification. The sources of errors are too high to take any risks. The DisplayPort UHBR Transmitter Test Software greatly reduces the chances of failure and the time spent in testing by providing a guided setup and automated configuration of the test instrument and interpretation of test results. That way, you can leave the complexity of the test setup to the application and focus on the most important: the product under test
Easy Test Setup

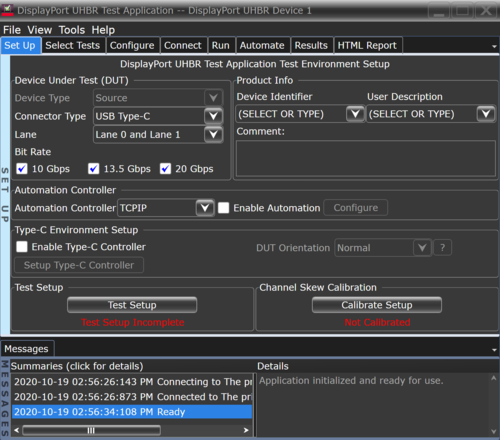

The DisplayPort UHBR Tx Test software blends the advanced measurements of Keysight’s Infiniium Series oscilloscopes with an intuitive user interface to provide unmatched testing capabilities. It is as simple as entering DUT attributes like connector type, lane under test and bitrates, and the application takes care of guiding the user though all necessary configuration steps to ensure the correctness of the test execution.
Comprehensive Test Coverage
DisplayPort electrical testing is a complex task as it requires the connection of the product under test to the test instrument with specific test point access fixtures, the configuration and execution of advanced measurements and, finally, the evaluation of test results against the limits described in the specification. The sources of errors are too high to take any risks. The DisplayPort UHBR Transmitter Test Software greatly reduces the chances of failure and the time spent in testing by providing a guided setup and automated configuration of the test instrument and interpretation of test results. That way, you can leave the complexity of the test setup to the application and focus on the most important: the product under test
Easy Test Setup
The DisplayPort UHBR Tx Test software blends the advanced measurements of Keysight’s Infiniium Series oscilloscopes with an intuitive user interface to provide unmatched testing capabilities. It is as simple as entering DUT attributes like connector type, lane under test and bitrates, and the application takes care of guiding the user though all necessary configuration steps to ensure the correctness of the test execution.
