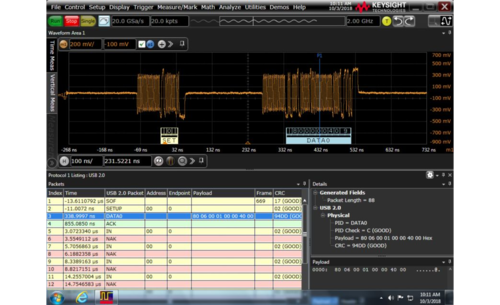

Keysight D9010USBP USB4, USB 3.x, USB 2.0 and eUSB2 Protocol Decode/Trigger Software

Key Features & Specifications

  • Get your USB testing of any speed done faster with this all-in-one USB trigger and decode package
  • Set up your scope to show USB4, USB 3.x, USB 2.0 and eUSB2 in less than 30 seconds with an auto setup feature
  • USB4 will be added to this package moving forward (with an active support subscription)
  • Get access to a rich set of integrated protocol-level triggers and searches – see datasheet for a complete list
  • Save time and eliminate errors by viewing packets at the protocol level
  • Use time-correlated views to quickly troubleshoot serial protocol problems back to their timing or signal integrity root cause

Description

This application includes a suite of configurable protocol-level searches and software-based triggering specific to all USB standards. It is compatible with S-Series, V-Series, Z-Series and UXR Series Infiniium oscilloscopes. USB4 and USB 3.2 trigger and decode are not available for the S-Series oscilloscopes. For detailed information on the decode and trigger settings, please refer to the datasheet. For assistance with using the applications, refer to the Infiniium help guide.

Product Number:

D9010USBP

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The D9010USBP software package for Infiniium oscilloscopes gives you the ability to trigger and decode on all speeds of USB signals: USB 2.0, eUSB2, USB 3.x and USB4. Support for future specifications will be added for those with an active support subscription.

This application makes it easy to debug and test designs that include USB protocols using Infiniium oscilloscopes. Get access to a rich set of integrated protocol level triggers specific to each serial bus. When serial triggering is selected, the application enables special real-time triggering hardware inside the scope.

Hardware-based triggering ensures that the scope never misses a trigger event when armed. This hardware takes signals acquired using either scope or digital channels and reconstructs protocol frames. It then inspects these protocol frames against specified protocol-level trigger conditions and triggers when the condition is met. • Easy access to setup with a dedicated Serial Decode front panel key.

  • Setup your scope to show protocol decode in less than 30 seconds with an auto setup key for every protocol that sets threshold levels, baud rates, sample rate, memory depth and more.
  • Save time and eliminate errors by viewing packets at the protocol level on the physical waveform, or in tabular or graphical format.
  • Easy to use search and navigate tools allow you to search through long sets of data and find specific packets of interest on the serial bus.
  • Segmented memory allows you to capture seconds to days’ worth of serial protocol traffic. The scope fills memory in segments as each acquisition sees a trigger condition, using time tags to track time between segments
