Keysight D9010EKRP 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
10/100GBASE-KR 64b/66b with Link Training Decode Software
- Set up your scope to show 64b/66b decode in less than 30 seconds
- Decode of 10G/100GBASE-KR links
- Link Training Decode of Differential Manchester Encoding (DME) to get detailed training frame information on control channels such as status update and coefficient update registers.
- Get access to a rich set of integrated protocol-level searches
100GBASE-KR/CR 64b/66b Solution with Link Training Decode Software

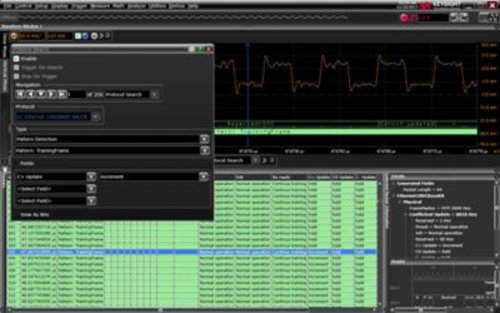

The softwareis combines both a 64b/66b decoder and a link training decoder. This enables engineers to decode 64b/66b data and link training data in less than 30 seconds. It includes a suite of configurable protocol-level searches and software-based triggering specific to 64b/66b and link training of Ethernet technologies such as 100GBASE-KR/CR. The link training signaling, also known as Differential Manchester Encoding (DME), provides detailed information on control channels such as status update and coefficient registers. The multi-tab protocol viewer includes correlation between the waveforms and the selected packet, enabling users to quickly move between the physical and protocol layer information using the time correlated tracking marker. The 64b/66b and link training decoder is compatible with 100GBASE-KR/CR. It is compatible with Keysight 90000 Series, V-Series, Z-Series and UXR-Series oscilloscopes.
