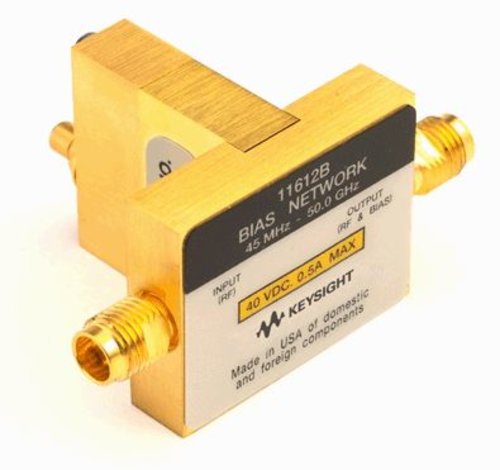

Keysight 11612B Bias Network 45 MHz - 50 GHz

  • Frequency range: 45 MHz to 50 GHz
  • Insertion loss: 0.8 dB (<10 GHz), 1.5 dB (<30 GHz), 2.5 dB (<45 GHz), 3.2 dB (<50 GHz)
  • Maximum SWR: 20 dB (<10 GHz), 15 dB (<20 GHz), 12 dB (<30 GHz), 10 dB (<50 GHz)
  • Impedance: 50 ohms
  • Bias current:  500 mA
  • Bias voltage: 40 V
  • Connectors: RF input -2.4mm (f), RF output -2.4mm (f), dc bias-SMB (m)

Product Number:

11612B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The Keysight 11612B broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying dc bias to the center conductor of the coax connector for your device while blocking the dc to the RF port.

  • RF Power: +24 dBm max
  • Cable: SMB (f) to BNC (m) included
  • Temperature: Warranted performance over 0° to 55° C unless otherwise noted.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

The Keysight 11612B broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying dc bias to the center conductor of the coax connector for your device while blocking the dc to the RF port.

  • RF Power: +24 dBm max
  • Cable: SMB (f) to BNC (m) included
  • Temperature: Warranted performance over 0° to 55° C unless otherwise noted.
