Key Features and Functions

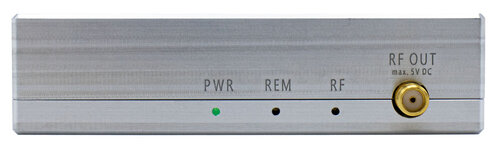

The AP4003A FS2 Frequency Synthesizer is a very compact and agile RF and microwave frequency synthesizer combining fast switching speed with low phase noise and high output power.
- Generate accurate and stable signals in both CW and pulse modulation
- Get coverage for a frequency range of 100 kHz to 22 GHz, with fast switching speed at 5 μs and a power range from -30 to +25 dBm
- Connect multiple units together through 1 GHz reference loop-through to implement multi-channel phase-coherent sources
- Use for applications such as radar signal generation and testing, beamforming, quantum computing, electronic warfare, and spectroscopy
Highlights
Accuracy and agility in a compact flange-mount format
Optimize your testing and generate accurate, stable signals with an excellently shielded and very compact frequency synthesizer weighing less than 0.5 kg and consuming just 17 W of power. Optimized for system integration, the AP4003A FS2 frequency synthesizer can be controlled over Ethernet with the SCPI-1999 command set.
