Keysight 16196D Parallel Electrode SMD Test Fixture

additional images:
Price

kr 126.933*
* excluding VAT free shipping (Denmark)

Product Number:

16196D

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

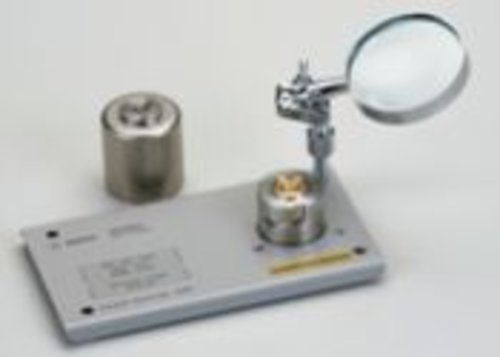

The 16196D surface mount devices (SMD) test fixture offers excellent repeatability and usability, with accurate correlation up to 3 GHz. 16196 series fixtures are custom designed to fit specific SMD sizes (see table below), and provide repeatable DUT positioning with reliable contacts to enable stable measurement results - reducing the possibility of operator-induced error. Traditionally, SMD inductor evaluation up to 3 GHz has been difficult to implement - now with the 16196 series, it’s easy to perform accurate and repeatable measurements.

The 16196 series SMD test fixtures are popular test accessories for use with the E4991A RF Impedance/Material analyzers.

Applicable device sizes of the 16196 series
ModelSize codeSpecification of size L x W x H (mm)
16196A0603 (inch) / 1608 (mm)(1.6 ± 0.15) x (0.8 ± 0.15) x (0.4 to 0.95)
16196B0402 (inch) / 1005 (mm)(1.0 ± 0.1) x (0.5 ± 0.1) x (0.3 to 0.6)
16196C0201 (inch) / 0603 (mm) (0.6 ± 0.03) x (0.3 ± 0.03) x (0.27 to 0.33)
16196D01005 (inch) / 0402 (mm)(0.4 ± 0.02) x (0.2 ± 0.02) x (0.11 to 0.22)
