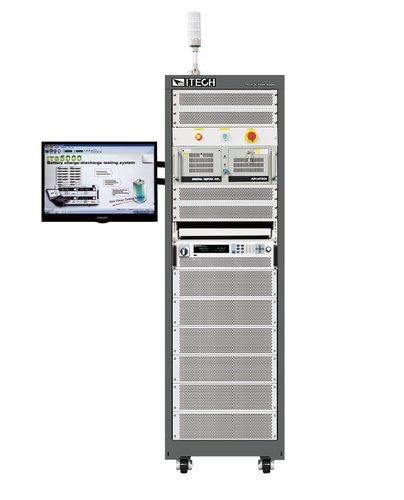

ITECH ITS5300 Battery Charge/Discharge Test System

Applications

ITS5300 battery charging discharging test system provides turnkey testing solution from Milliampere-grade single cell to Megawatt battery pack.

During charging-discharging life cycle test (BOL Test), it can simulate the real working condition, such as driving cycle, current pulse and self-defined waveform, to realize the comprehensive evaluation of battery life time, energy, and endurance mileage. The system is applicable to new products development, quality analysis/incoming inspection, production test and so on. Modular design provides great flexibility and independence for the test system configuration.

Key Features

  • Modular design, Maximum voltage and power up to 2250V/1152kW
  • Power regenerative efficiency up to 95%
  • Full protection
  • High precision measurement, up to 0.02%+0.02%FS
  • AC/DC internal resistance test
  • Strong scalability, easy to integrate other equipment
  • High sampling rate, up to 1ms
  • Rich charging and discharging test steps
  • Seamless current switching, road conditions simulation
  • Data query and statistical analysis functions

Battery Pack Test

  • Bidirectional regenerative module of high power density, up to 18kW per single 3U module.
  • High energy regenerative efficiency up to 95%.
  • Patented parallel technology of fiber paralleling for higher power.
  • Seamless switching between sourcing and sinking.
  • Simulation of driving condition waveforms of up to 10,000,000 points.
  • BMS message receiving and transmitting.
  • Auxiliary power supply and parameters measurement.
  • Supporting integration of equipment from 3rd party,equipment such as incubator, water-cooling system.
  • Independent control of each channel while running.
  • Simulation of DC charging station to do testing of complete vehicle’s battery.
  • Simulation of HPPC (Hybrid Pulse Power Characteristic)/Cold Cranking current
  • Quick data checking and statistics analyzing functions.

Documents and further Resources:

Product Number:

ITS5300

Manufacturer:

ITECH

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

ITS5300 battery charging discharging test system provides turnkey testing solution from Milliampere-grade single cell to Megawatt battery pack.

During charging-discharging life cycle test (BOL Test), it can simulate the real working condition, such as driving cycle, current pulse and self-defined waveform, to realize the comprehensive evaluation of battery life time, energy, and endurance mileage. The system is applicable to new products development, quality analysis/incoming inspection, production test and so on. Modular design provides great flexibility and independence for the test system configuration.

To meet the demand of production line testing in large quantities, ITS5300 can simultaneously test the performance of hundreds of independent battery modules/cells, greatly improving the testing efficiency and production of production line.ITS5300 also provides regenerative test solution, and the regenerative efficiency up to 95%, it solves the problem of high electricity cost caused by high power storage battery or large quantity battery module/cell test.

ITS5300 provides comprehensive protection function, not merely hardware itself has over-voltage, over-current, over-temperature, anti-islanding protections, but also the system has optional functions such as emergency stop module, power-off memory function, anti-sparkling and reverse connection protection, under voltage protection etc, so as to effectively ensure the reliability of long-time operation of the system.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

ITS5300 battery charging discharging test system provides turnkey testing solution from Milliampere-grade single cell to Megawatt battery pack.

During charging-discharging life cycle test (BOL Test), it can simulate the real working condition, such as driving cycle, current pulse and self-defined waveform, to realize the comprehensive evaluation of battery life time, energy, and endurance mileage. The system is applicable to new products development, quality analysis/incoming inspection, production test and so on. Modular design provides great flexibility and independence for the test system configuration.

To meet the demand of production line testing in large quantities, ITS5300 can simultaneously test the performance of hundreds of independent battery modules/cells, greatly improving the testing efficiency and production of production line.ITS5300 also provides regenerative test solution, and the regenerative efficiency up to 95%, it solves the problem of high electricity cost caused by high power storage battery or large quantity battery module/cell test.

ITS5300 provides comprehensive protection function, not merely hardware itself has over-voltage, over-current, over-temperature, anti-islanding protections, but also the system has optional functions such as emergency stop module, power-off memory function, anti-sparkling and reverse connection protection, under voltage protection etc, so as to effectively ensure the reliability of long-time operation of the system.
