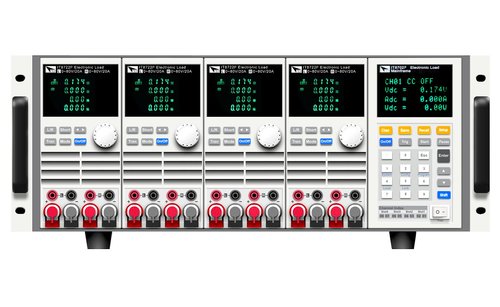

ITECH IT8702P DC Load Main Frame with USB, RS232, Ethernet

DC Input Ratings:

  • Maximum power 2400 W
  • Expandable with IT8702P expander

Operating modes:

  • Constant Voltage
  • Constant Current
  • Constant Resistance
  • Constant Power

Feature set:

  • Removable modules for easy system configurability
  • Support up to 16 channels with mainframe extension
  • Dynamic power distribution function for dual channels
  • Dual-channel module displays all channel information simultaneously
  • Measure short-circuit peak current value
  • Up to 25 kHz transient mode and 100 khz list mode
  • Measurement speed:up to 50 kHz;
  • Auto-test function
  • Output resolution up to 16 bits,voltmeter and ammeter reach 5 1/2 bits
  • Highlight VFD display for both mainframe and modules
  • Simulate transient response and export measured values
  • Built-in waveform generator and List mode

Connectivity:

  • LAN, USB and RS-232 is standard
  • SCPI and USBTMC protocol support

Documents and Software Solutions:

Price

kr 6.971*
* excluding VAT free shipping (Denmark)

Product Number:

IT8702P

Manufacturer:

ITECH

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

IT8700P DC electronic loads are multichannel programmable electronic loads.They support up to 16 channels with mainframe extension. The mainframe includes as standard RS232/USB/Ethernet communication interfaces. The DC electronic loads can provide multi channel solutions matching the requirements of your design and test. Modules are operated using the keypad and rotary knob on the front panel or the remote controlled SCPI commands.

The IT8700P series has been improved and upgraded on the basis of IT8700. It keeps the original modular design. A single frame can reach 8 channels, and extended frame can reach 16 channels. It is equipped with both front and rear terminals, which can meet various testing requirements of users. Same as IT8700, IT8700P also has the functions of slope adjustment and waveform editing. Besides, IT8700P has increased the functions including maximum current limit, PLC setting and CV loop adjustment.

Users can set the automatic test function in the upgraded 7 operating modes, which is convenient for fast and accurate testing on R&D and production lines. At the same time, IT8700P series has full protection such as OVP,OCP,OPP,OTP, etc., which can prevent damage or injury caused by miss operation or environmental factors.
